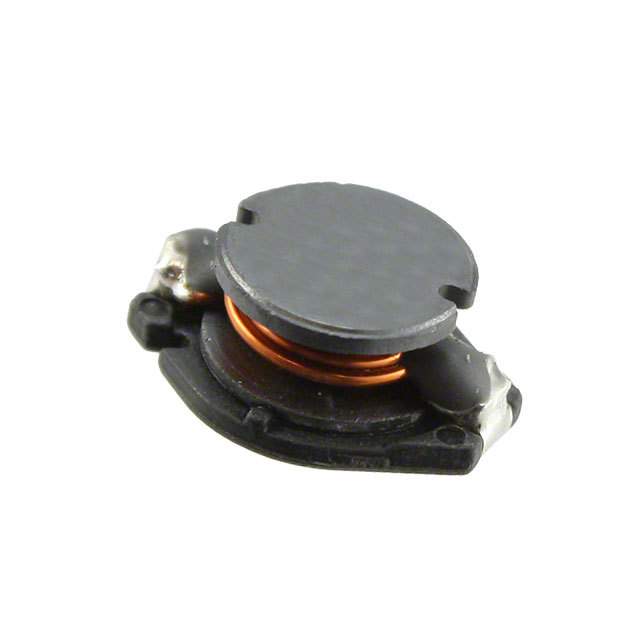

SDR1005-1R5ML

SMD功率电感器可在E6系列便携式通信设备 SMD Power Inductors Available in E6 series Portable communications equipment

1.5 µH 无屏蔽 绕线 器 6.5 A 9 毫欧最大 非标准

得捷:
FIXED IND 1.5UH 6.5A 9 MOHM SMD

艾睿:
This power SDR1005-1R5ML surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 95M Hz. This SMD inductor has a maximum DC current of 6.5 A with a maximum resistance of 9m Ohm. It has an inductance of 1.5u H. This product is 12.9 mm long, 5.3 mm tall and 10.2 mm deep. It has a tolerance of 20%. This device is made with wirewound technology.

安富利:
Ind Power Wirewound 1.5uH 20% 1KHz 50Q-Factor Ferrite 6.5A T/R

Verical:
Inductor Power Unshielded Wirewound 1.5uH 20% 1KHz 50Q-Factor Ferrite 6.5A 0.009Ohm DCR T/R

Newark:
# BOURNS  SDR1005-1R5ML  Surface Mount Power Inductor, SDR1005 Series, 1.5 µH, 6.5 A, 8 A, Unshielded, 9000 µohm

Online Components:
Inductor Power Wirewound 1.5uH 20% 1KHz 50Q-Factor Ferrite 6.5A 9mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 1.5uH 20% 1KHz 50Q-Factor Ferrite 6.5A 9mOhm DCR T/R

Win Source:
1.5μH Unshielded Wirewound Inductor 6.5A 9 mOhm Max Nonstandard
