6.8uH ±30% 800mA
屏蔽 绕线 器 330 毫欧最大 非标准
得捷:
FIXED IND 6.8UH 800MA 330MOHM SM
艾睿:

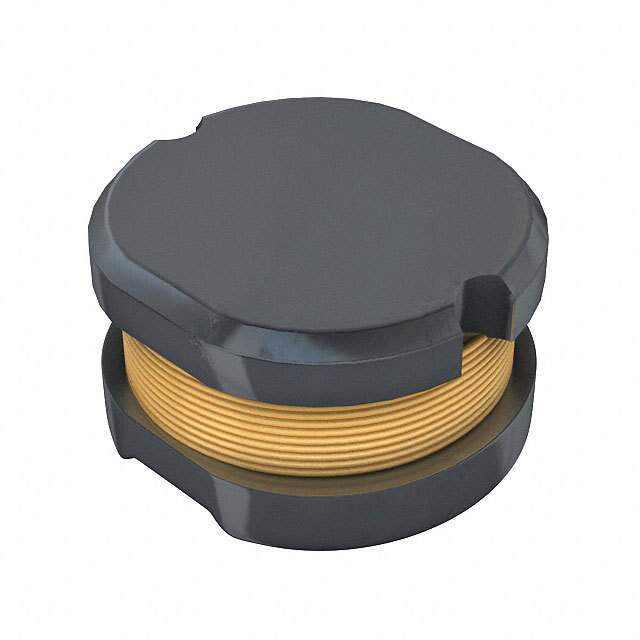

An ideal space-saving electronic component is this power SRU2013-6R8Y surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 3 mm long, 1.5 mm tall and 3 mm deep. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 800m A with a maximum resistance of 330m Ohm. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 60MTyp Hz. It has an inductance of 6.8u H.
安富利:
Ind Power Shielded Wirewound 6.8uH 30% 100KHz 10Q-Factor Ferrite 800mA T/R
Verical:
Inductor Power Shielded Wirewound 6.8uH 30% 100KHz 10Q-Factor Ferrite 0.8A 0.33Ohm DCR T/R
