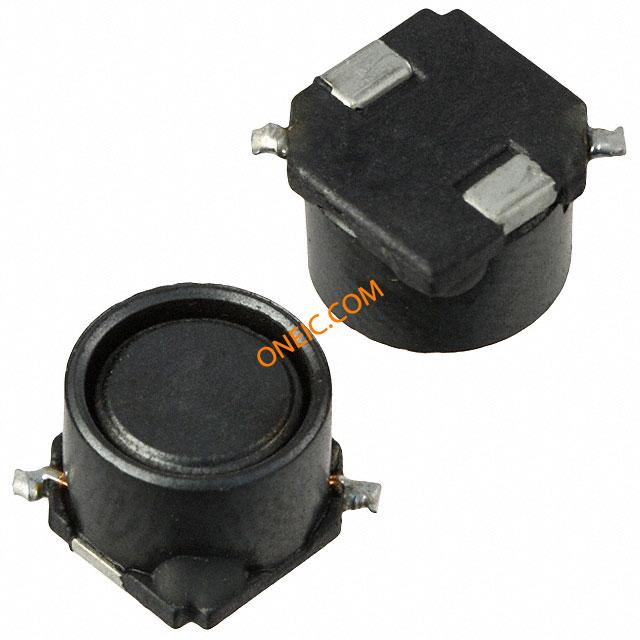

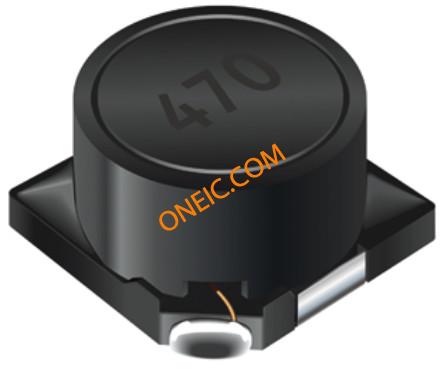

SRR7045-330M

SRR7045 系列磁性屏蔽线绕电感器Bourns SRR7045 系列贴片屏蔽式功率电感器。 应用包括直流/直流转换器和电源的输入/输出，适用于：便携式通信设备；摄像机；液晶电视；汽车收音机### Bourns 非标准表面安装电感器（扼流圈）

SRR7045 系列磁性屏蔽线绕器

Bourns SRR7045 系列贴片屏蔽式功率电感器。 应用包括直流/直流转换器和电源的输入/输出，适用于：便携式通信设备；摄像机；液晶电视；汽车收音机

立创商城:
33uH ±20% 1.15A 115mΩ

得捷:
FIXED IND 33UH 1.15A 115MOHM SMD

欧时:
Bourns SRR7045 系列 屏蔽 铁氧体芯材 33 μH 绕线贴片电感器 SRR7045-330M, ±20%容差, 1.15A Idc Q:25

贸泽:
Fixed Inductors 33uH 20% SMD 7045

e络盟:

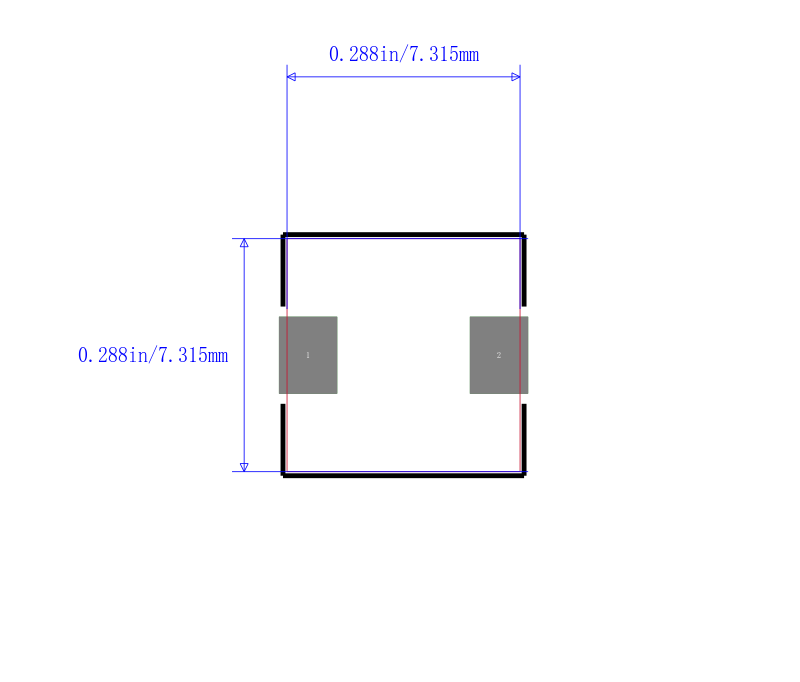

功率电感SMD, 33 µH, 1.15 A, 屏蔽, 900 mA, SRR7045 Series, 7mm x 7mm x 4.5mm

艾睿:
Use this power SRR7045-330M surface mount inductor from Bourns to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 12MTyp Hz. It has an inductance of 33u H. This product is 7.3 mm long, 4.8 mm tall and 7.3 mm deep. This SMD inductor has a maximum DC current of 1.15 A with a maximum resistance of 115m Ohm. This device is made with wirewound technology. It has a tolerance of 20%.

Allied Electronics:
SRR7045 WireWound SMDinductor w/FerriteCore, 33 uH +/-20%WireWound 1.15A Idc Q:25

Chip1Stop:
Ind Power Shielded Wirewound 33uH 20% 100KHz 25Q-Factor Ferrite 1.15A T/R

Verical:
Inductor Power Shielded Wirewound 33uH 20% 1KHz 25Q-Factor Ferrite 1.15A 115mOhm DCR T/R

MASTER:
Inductor Power Shielded Wirewound 33uH 20% 1KHz 25Q-Factor Ferrite 1.15A 115mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 33uH 20% 1KHz 25Q-Factor Ferrite 1.15A 115mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 33uH 20% 1KHz 25Q-Factor Ferrite 1.15A 115mOhm DCR T/R
