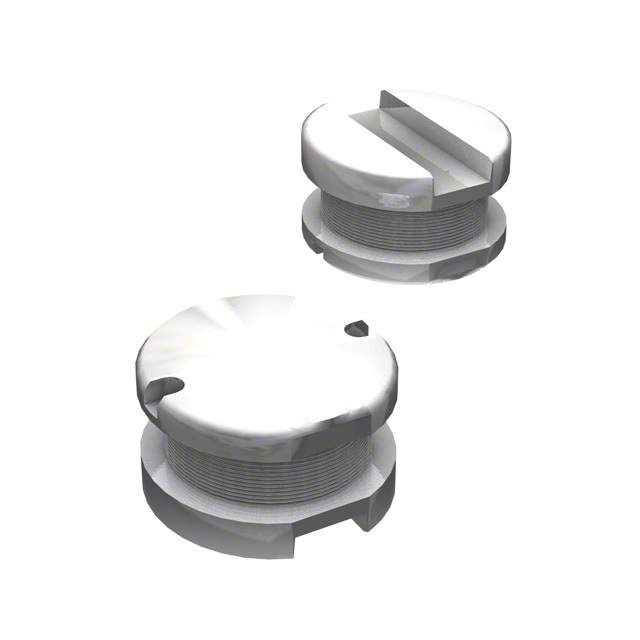

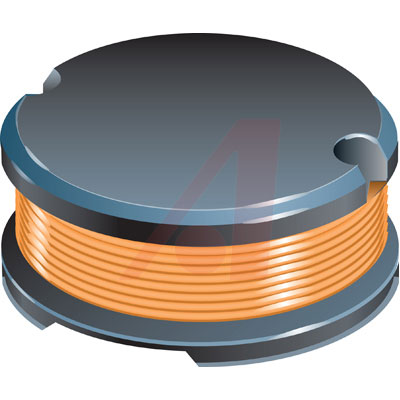

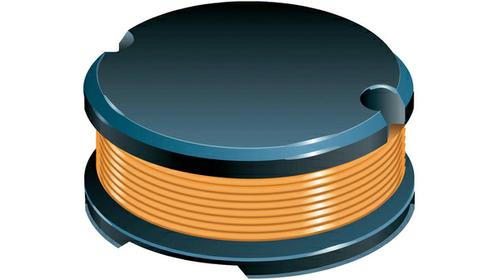

SDR1006-121KL

BOURNS  SDR1006-121KL  电感, 120uH, 1.5A, ±10%, 5MHZ

SDR1006 系列线绕扼流圈

提供 E12 系列

小型设计，最大直径仅 9.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 120UH 890MA 400MOHM SM

立创商城:
120uH ±10% 890mA 400mΩ

欧时:
### SDR1006 系列线绕扼流圈提供 E12 系列 小型设计，最大直径仅 9.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

贸泽:
Fixed Inductors 120uH 10% SMD 1006

e络盟:
BOURNS  SDR1006-121KL  电感, 120uH, 1.5A, ±10%, 5MHZ

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power SDR1006-121KL surface mount inductor from Bourns is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 5M Hz. It has an inductance of 120u H. It has a tolerance of 10%. This SMD inductor has a maximum DC current of 890m A with a maximum resistance of 400m Ohm. This product is 5.8 mm tall with a diameter of 9.8 mm. This device utilizes wirewound technology.

Allied Electronics:
Inductor; Power; Non-Shielded; Wirewound; 120uH; 10%; 0.89A

安富利:
Ind Power Wirewound 120uH 10% 1KHz 15Q-Factor Ferrite 890mA T/R

Chip1Stop:
Ind Power Wirewound 120uH 10% 1KHz 15Q-Factor Ferrite 890mA T/R

Verical:
Inductor Power Unshielded Wirewound 120uH 10% 1KHz 15Q-Factor Ferrite 0.89A 0.4Ohm DCR T/R

Newark:
# BOURNS  SDR1006-121KL  Surface Mount Power Inductor, SDR1006 Series, 120 µH, 890 mA, 1.5 A, Unshielded, 0.4 ohm

Electro Sonic:
Inductor Power Wirewound 120uH 10% 1KHz 15Q-Factor Ferrite 890mA 400mOhm DCR T/R
