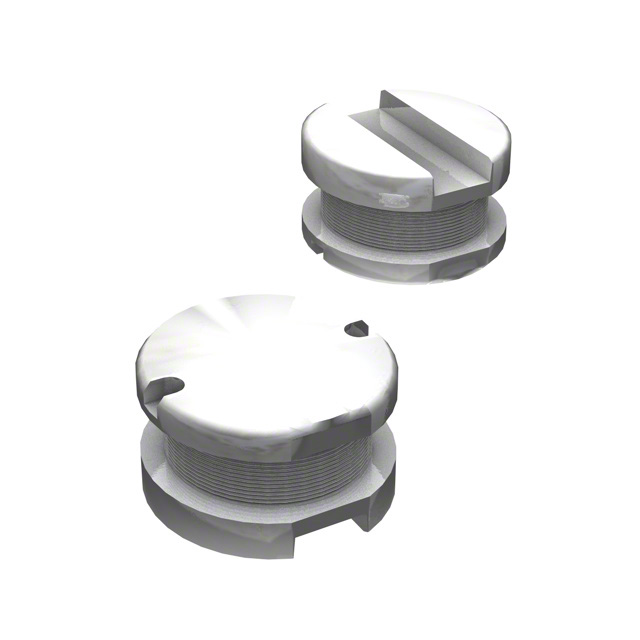

SDR1006-1R5ML

SDR1006 系列线绕扼流圈提供 E12 系列 小型设计，最大直径仅 9.8mm 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

SDR1006 系列线绕扼流圈

提供 E12 系列

小型设计，最大直径仅 9.8mm

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 1.5UH 6.4A 18 MOHM SMD

立创商城:
1.5uH ±20% 6.4A 18mΩ

欧时:
Bourns SDR1006 系列 铁氧体芯材 1.5 μH 绕线贴片电感器 SDR1006-1R5ML, ±20%容差, 6.4A Idc

艾睿:
This power SDR1006-1R5ML surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 5.8 mm tall with a diameter of 9.8 mm. It has an inductance of 1.5u H. This SMD inductor has a maximum DC current of 6.4 A with a maximum resistance of 18m Ohm. It has a tolerance of 20%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 105M Hz. This device utilizes wirewound technology.

Allied Electronics:
WireWound SMD Inductor w/ FerriteCore, 1.5 uH +/-20%WireWound 6.4A Idc

安富利:
Ind Power Wirewound 1.5uH 20% 1KHz 35Q-Factor Ferrite 6.4A T/R

Chip1Stop:
Ind Power Wirewound 1.5uH 20% 1KHz 35Q-Factor Ferrite 6.4A T/R

Verical:
Inductor Power Unshielded Wirewound 1.5uH 20% 1KHz 35Q-Factor Ferrite 6.4A 0.018Ohm DCR T/R

Newark:
# BOURNS  SDR1006-1R5ML  Surface Mount Power Inductor, SDR1006 Series, 1.5 µH, 6.4 A, 10 A, Unshielded, 0.018 ohm

Electro Sonic:
Inductor Power Wirewound 1.5uH 20% 1KHz 35Q-Factor Ferrite 6.4A 18mOhm DCR T/R
