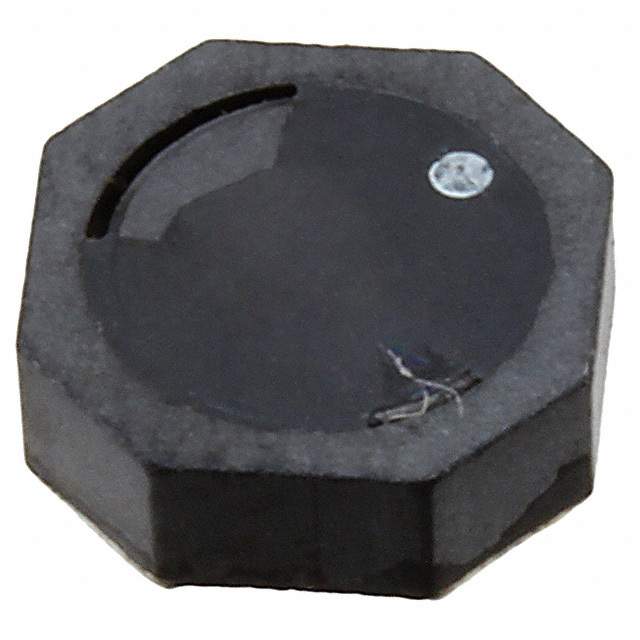

SRU6025 Series Magnetically Shielded Wire Wound ChokesLow profile shielded construction High current rating. Ideal for high frequencies. Applications: dc / dc converters, EMI filters. ### Bourns 非标准表面安装电感器（扼流圈）
SRU6025 系列磁性屏蔽线绕扼流圈
薄型屏蔽结构
高电流额定值。
非常适合于高频率。
应用：直流/直流转换器，EMI 滤波器。
得捷:
FIXED IND 150UH 540MA 770MOHM SM
欧时:
Bourns SRU6025 系列 屏蔽 铁氧体芯材 150 μH 绕线贴片电感器 SRU6025-151Y, ±30%容差 Q:30
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SRU6025-151Y surface mount inductor from Bourns to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 540m A with a maximum resistance of 770m Ohm. It has an inductance of 150u H. This product is 6.8 mm long, 2.8 mm tall and 6.8 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 5M Hz. This device utilizes wirewound technology.
Allied Electronics:
Shielded WireWound SMD Inductor w/ Ferrite Core, 150 uH +/-30% Q:30
安富利:
Ind Power Shielded Wirewound 150uH 30% 100KHz 30Q-Factor Ferrite 540mA T/R
Chip1Stop:
Ind Power Shielded Wirewound 150uH 30% 100KHz 30Q-Factor Ferrite 540mA T/R
Verical:
Inductor Power Shielded Wirewound 150uH 30% 100KHz 30Q-Factor Ferrite 0.54A 0.77Ohm DCR T/R
