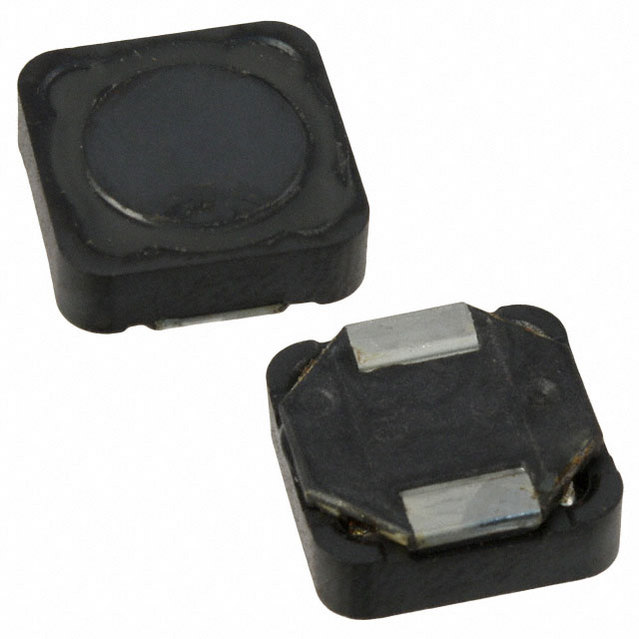

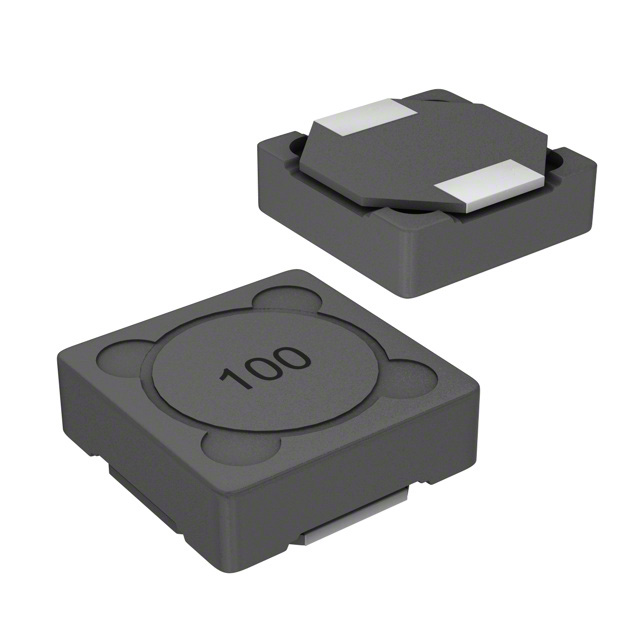

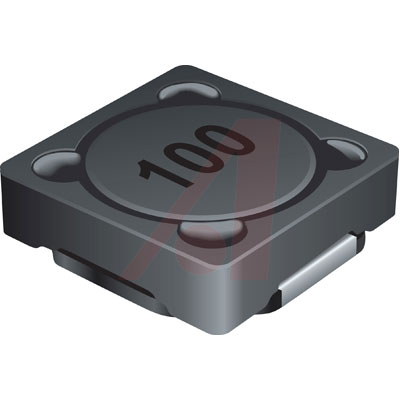

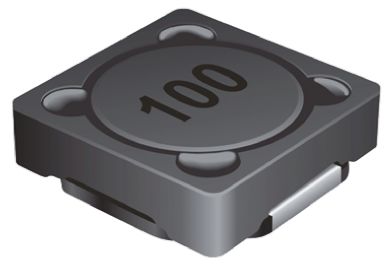

SRR1240-150M

BOURNS  SRR1240-150M  电感, 15uH, 3.2A RMS, 20%, 22MHZ

SRR1240 系列磁性屏蔽线绕器

Bourns SRR1240 系列贴片屏蔽式功率电感器为薄型，仅 4.5mm。 应用包括直流/直流转换器和电源的输入/输出，适用于：便携式通信设备；摄像机；液晶电视；汽车收音机

高电流额定值

特别适合高频率

得捷:
FIXED IND 15UH 3.5A 47 MOHM SMD

欧时:
### SRR1240 系列磁性屏蔽线绕电感器Bourns SRR1240 系列贴片屏蔽式功率电感器为薄型，仅 4.5mm。 应用包括直流/直流转换器和电源的输入/输出，适用于：便携式通信设备；摄像机；液晶电视；汽车收音机高电流额定值 特别适合高频率 ### Bourns 非标准表面安装电感器（扼流圈）

立创商城:
15uH ±20% 3.5A 47mΩ

e络盟:
BOURNS  SRR1240-150M  电感, 15uH, 3.2A RMS, 20%, 22MHZ

艾睿:

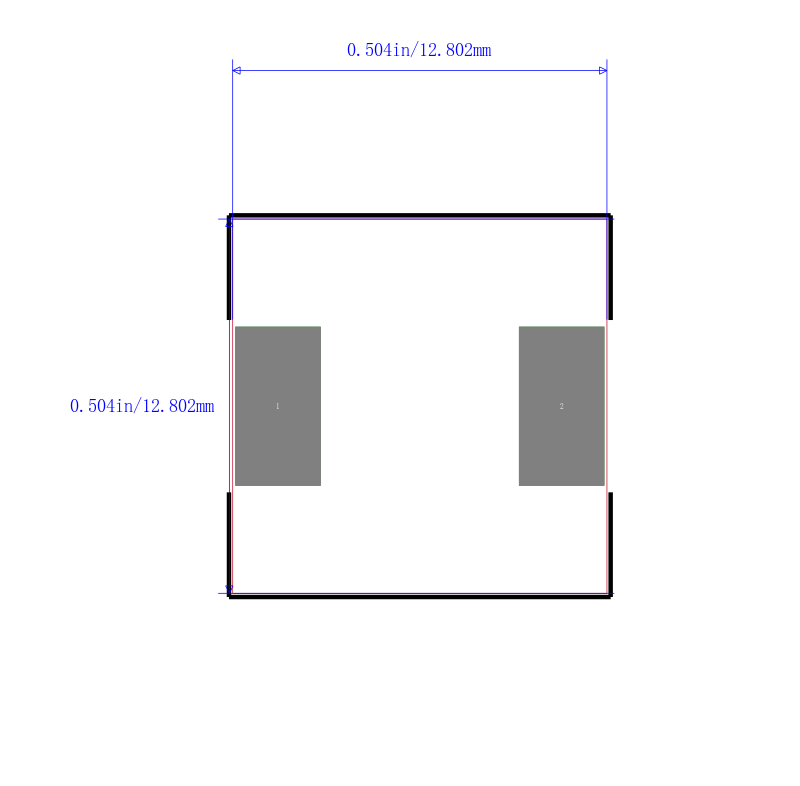

This power SRR1240-150M surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes wirewound technology. This product is 12.8 mm long, 4.5 mm tall and 12.8 mm deep. It has an inductance of 15u H. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 3.5 A with a maximum resistance of 47m Ohm. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 22MTyp Hz.

Allied Electronics:
Inductor; Power; Shielded; Wirewound; 15uH; 20%; 3.5A

Chip1Stop:
Inductor Power Shielded Wirewound 15uH 20% 100KHz 16Q-Factor Ferrite 3.5A 47mOhm DCR T/R

Verical:
Inductor Power Shielded Wirewound 15uH 20% 100KHz 16Q-Factor Ferrite 3.5A 0.047Ohm DCR T/R

Newark:
# BOURNS  SRR1240-150M  Surface Mount Power Inductor, SRR1240 Series, 15 µH, 3.5 A, 3.2 A, Shielded, 0.047 ohm

MASTER:
Inductor Power Shielded Wirewound 15uH 20% 100KHz 16Q-Factor Ferrite 3.5A 47mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 15uH 20% 100KHz 16Q-Factor Ferrite 3.5A 47mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 15uH 20% 100KHz 16Q-Factor Ferrite 3.5A 47mOhm DCR T/R
