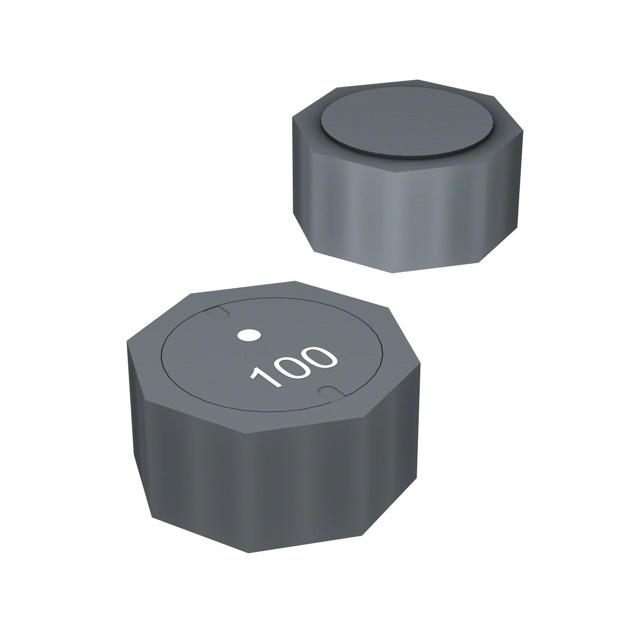

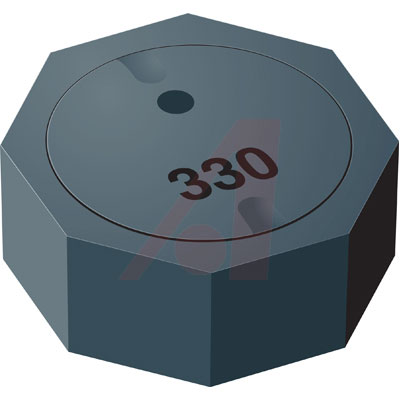

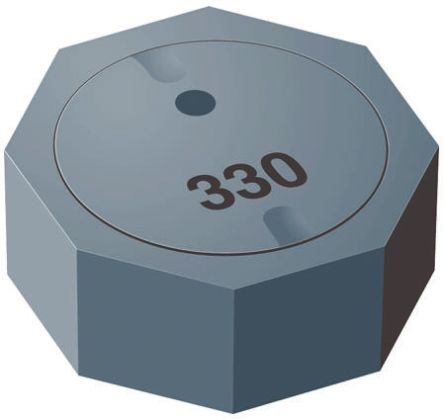

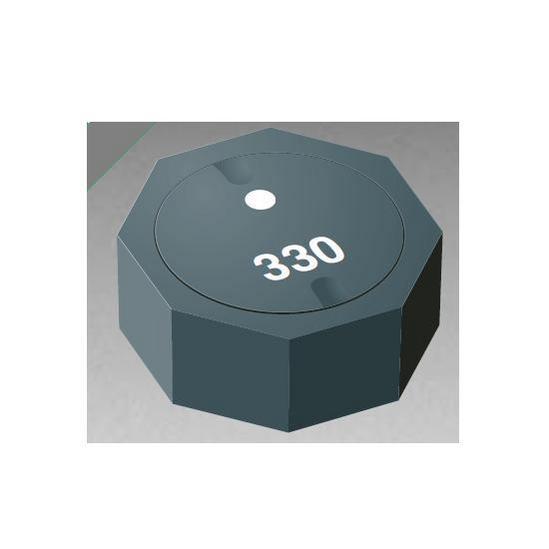

SRU1048-221Y

SRU1048 系列磁性屏蔽线绕扼流圈薄型屏蔽结构 高电流额定值。 非常适合于高频率。 应用：直流/直流转换器，EMI 滤波器。 ### Bourns 非标准表面安装电感器（扼流圈）

SRU1048 系列磁性屏蔽线绕扼流圈

薄型屏蔽结构

高电流额定值。

非常适合于高频率。

应用：直流/直流转换器，EMI 滤波器。

得捷:
FIXED IND 220UH 800MA 350MOHM SM

立创商城:
220uH ±30% 800mA 350mΩ

欧时:
Bourns SRU1048 系列 屏蔽 铁氧体芯材 220 μH 绕线贴片电感器 SRU1048-221Y, ±30%容差, 800mA Idc Q:20

e络盟:
功率电感SMD, 220 µH, 800 mA, 屏蔽, 700 mA, SRU1048 Series, 10mm x 10mm x 4.8mm

艾睿:
This power SRU1048-221Y surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 220u H. This product is 10.3 mm long, 5.1 mm tall and 10.3 mm deep. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 800m A with a maximum resistance of 350m Ohm. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 4MTyp Hz.

Allied Electronics:
Inductor; Power; Shielded; Wirewound; 220uH; 30%

安富利:
Ind Power Shielded Wirewound 220uH 30% 100KHz 20Q-Factor Ferrite 800mA T/R

Chip1Stop:
Inductor Power Shielded Wirewound 220uH 30% 100KHz 20Q-Factor Ferrite 800mA 350mOhm DCR T/R

Verical:
Inductor Power Shielded Wirewound 220uH 30% 100KHz 20Q-Factor Ferrite 800mA 350mOhm DCR T/R

Newark:
# BOURNS  SRU1048-221Y  Surface Mount Power Inductor, SRU1048 Series, 220 µH, 800 mA, 700 mA, Shielded, 0.35 ohm

MASTER:
Inductor Power Shielded Wirewound 220uH 30% 100KHz 20Q-Factor Ferrite 800mA 350mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 220uH 30% 100KHz 20Q-Factor Ferrite 800mA 350mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 220uH 30% 100KHz 20Q-Factor Ferrite 800mA 350mOhm DCR T/R
