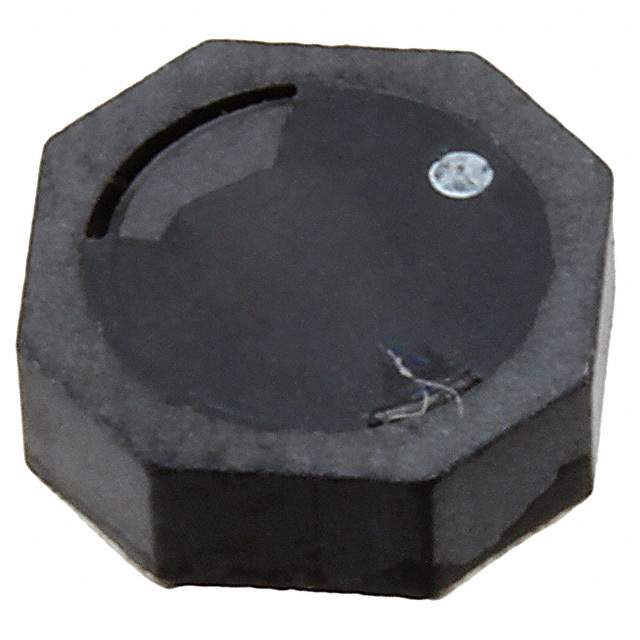

SRU6025-220Y

SRU6025 Series Magnetically Shielded Wire Wound ChokesLow profile shielded construction High current rating. Ideal for high frequencies. Applications: dc / dc converters, EMI filters. ### Bourns 非标准表面安装电感器（扼流圈）

SRU6025 系列磁性屏蔽线绕扼流圈

薄型屏蔽结构

高电流额定值。

非常适合于高频率。

应用：直流/直流转换器，EMI 滤波器。

欧时:
Power inductor SMD shielded 22uH

立创商城:
22uH ±30% 1.6A 130mΩ

得捷:
FIXED IND 22UH 1.6A 130 MOHM SMD

艾睿:
Make any circuit look clean and compact using this power SRU6025-220Y surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 6.8 mm long, 2.8 mm tall and 6.8 mm deep. This device is made with wirewound technology. It has an inductance of 22u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 18M Hz. This SMD inductor has a maximum DC current of 1.6 A with a maximum resistance of 130m Ohm.

Allied Electronics:
SRU6025 Series Shielded WireWound SMD Inductor w/ Ferrite Core, 22 uH +/-30% Q:12

安富利:
Ind Power Shielded Wirewound 22uH 30% 100KHz 12Q-Factor Ferrite 1.6A T/R

Verical:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 12Q-Factor Ferrite 1.6A 0.13Ohm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 12Q-Factor Ferrite 1.6A 130mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 22uH 30% 100KHz 12Q-Factor Ferrite 1.6A 0.13Ohm DCR T/R
