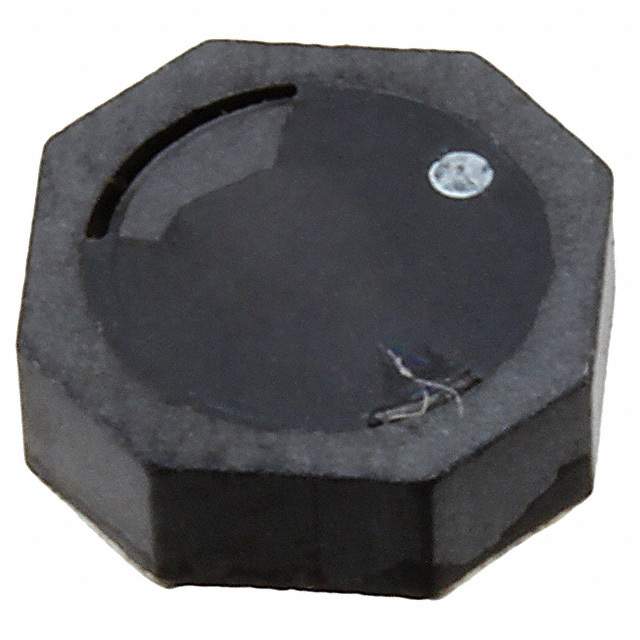

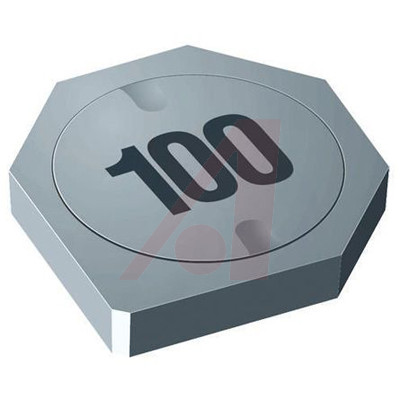

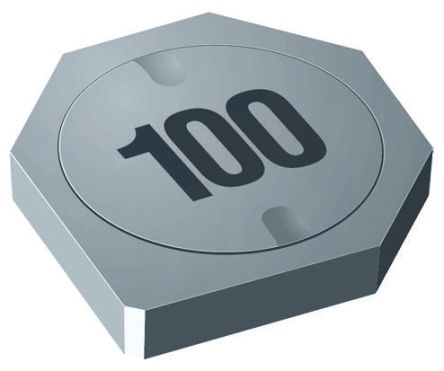

BOURNS SRU6025-150Y 表面贴装功率电感器, SRU6025系列, 15 µH, ± 30%, 屏蔽, 0.086 ohm, 1.8 A
SRU6025 系列磁性屏蔽线绕扼流圈
薄型屏蔽结构
高电流额定值。
非常适合于高频率。
应用:直流/直流转换器,EMI 滤波器。
得捷:
FIXED IND 15UH 1.8A 86 MOHM SMD
欧时:
### SRU6025 Series Magnetically Shielded Wire Wound ChokesLow profile shielded construction High current rating. Ideal for high frequencies. Applications: dc / dc converters, EMI filters. ### Bourns 非标准表面安装电感器(扼流圈)
e络盟:
功率电感SMD, 15 µH, 1.8 A, 屏蔽, 920 mA, SRU6025系列, 6.5mm x 6.2mm x 2.5mm
艾睿:
Make any circuit look clean and compact using this power SRU6025-150Y surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 1.8 A with a maximum resistance of 86m Ohm. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 22M Hz. This product is 6.8 mm long, 2.8 mm tall and 6.8 mm deep. This device utilizes wirewound technology. It has an inductance of 15u H.
Allied Electronics:
SRU6025 Series Shielded WireWound SMD Inductor w/ Ferrite Core, 15 uH +/-30% Q:12
安富利:
Ind Power Shielded Wirewound 15uH 30% 100KHz 12Q-Factor Ferrite 1.8A T/R
Chip1Stop:
Ind Power Shielded Wirewound 15uH 30% 100KHz 12Q-Factor Ferrite 1.8A T/R
Verical:
Inductor Power Shielded Wirewound 15uH 30% 100KHz 12Q-Factor Ferrite 1.8A 0.086Ohm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 15uH 30% 100KHz 12Q-Factor Ferrite 1.8A 86mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 15uH 30% 100KHz 12Q-Factor Ferrite 1.8A 0.086Ohm DCR T/R
额定电流 1.8 A
容差 ±30 %
电感 15 µH
自谐频率 22 MHz
Q值 12.0
电阻 86.0 mΩ
共振频率 22.0 MHz
电感公差 ±30 %
测试频率 100 kHz
电阻DC) ≤86 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.086 Ω
安装方式 Surface Mount
引脚数 2
封装 6.5mm x 6.2mm x 2.5mm
长度 6.5 mm
宽度 6.2 mm
高度 2.8 mm
封装 6.5mm x 6.2mm x 2.5mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
