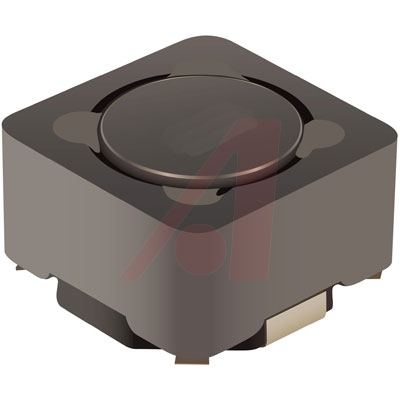

BOURNS SRR0745A-151M 表面贴装功率电感器, AEC-Q200 SRR0745A系列, 150 µH, ± 20%, 屏蔽, 0.76 ohm, 480 mA
**Features:
**
* Shielded Construction
* Inductance Range: 10 to 1000 μH
* Heating Current up to 2.1 A
* Dimensions: 7.3 × 7.3 × 4.5 mm
* AEC-Q200 Qualified**
Applications:
**
* Automotive Systems: Driver Assistant, Information, Entertainment and Lighting
* DC/DC Converters
* Power Supplies
立创商城:
150uH ±20% 480mA 760mΩ
得捷:
FIXED IND 150UH 480MA 760MOHM SM
贸泽:
Fixed Inductors 150uH 20% SMD 0745 AEC-Q200
e络盟:
功率电感SMD, 150 µH, 480 mA, 屏蔽, 580 mA, SRR0745A 系列, 7.3mm x 7.3mm x 4.5mm
艾睿:
This power SRR0745A-151M surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 480mA typ with a maximum resistance of 760m Ohm. It has a tolerance of 20%. This product is 7.5 mm long, 4.7 mm tall and 7.5 mm deep. It has an inductance of 150u H. This device utilizes wirewound technology. Its test frequency is 1K Hz.
Allied Electronics:
SMD Shieled Power Inductor; 150uH; 20%; SRR0745A
安富利:
Ind Power Shielded 150uH 20% 1KHz Ferrite 480mA T/R
Verical:
Inductor Power Shielded Wirewound 150uH 20% 1KHz Ferrite 0.48A 0.76Ohm DCR Automotive T/R
Newark:
# BOURNS SRR0745A-151M Surface Mount Power Inductor, AEC-Q200 SRR0745A Series, 150 H, 20%, Shielded, 0.76 ohm, 480 mA
额定电流 480 mA
容差 ±20 %
电感 150 µH
电感公差 ±20 %
测试频率 1 kHz
电阻DC) 0.76 Ω
工作温度Max 125 ℃
工作温度Min 40 ℃
电阻DC Max 0.76 Ω
安装方式 Surface Mount
封装 7.3mm x 7.3mm x 4.5mm
长度 7.3 mm
宽度 7.3 mm
高度 4.7 mm
封装 7.3mm x 7.3mm x 4.5mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
