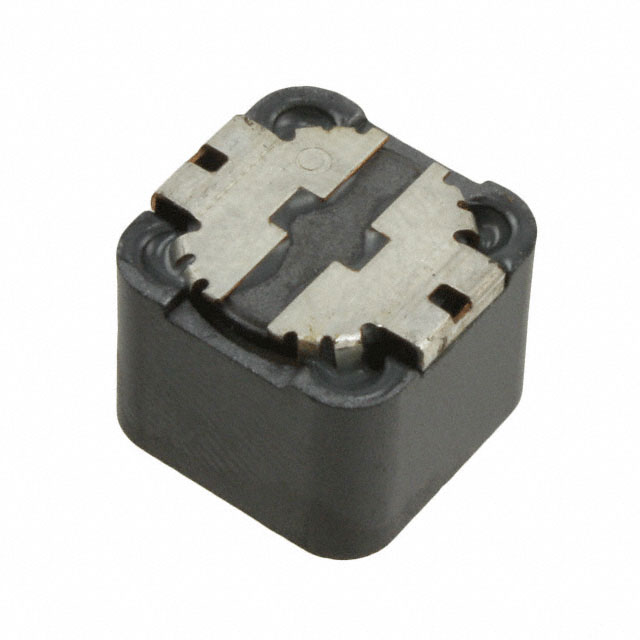

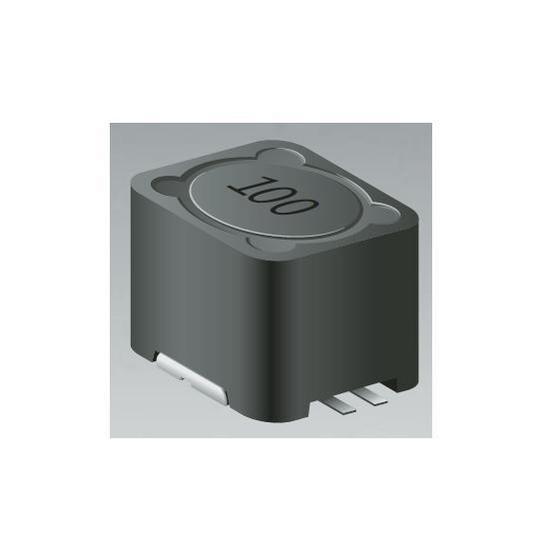

BOURNS SRR1210-100M INDUCTOR, SHIELDED, 10UH, 6.5A, 20% 新
Inductor Power Shielded Wirewound 10uH 20% 100KHz 16Q-Factor Ferrite 6.5A 18mOhm DCR T/R
得捷:
FIXED IND 10UH 6.5A 18 MOHM SMD
欧时:
Inductor Power shielded 10uH 20% 6.5A
立创商城:
10uH ±20% 6.5A 18mΩ
e络盟:
电感, 屏蔽, 10UH, 6.5A, 20%
艾睿:
Save valuable space on a PCB with this power SRR1210-100M surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a tolerance of 20%. It has an inductance of 10u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 12MTyp Hz. This product is 12.5 mm long, 10 mm tall and 12.5 mm deep. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 6.5 A with a maximum resistance of 18m Ohm.
安富利:
Ind Power Shielded Wirewound 10uH 20% 100KHz 16Q-Factor Ferrite 6.5A T/R
Verical:
Inductor Power Shielded Wirewound 10uH 20% 100KHz 16Q-Factor Ferrite 6.5A 18mOhm DCR T/R
Newark:
# BOURNS SRR1210-100M Surface Mount Power Inductor, SRR1210 Series, 10 µH, 6.5 A, 6.5 A, Shielded, 0.018 ohm
MASTER:
Inductor Power - Shielded - Wirewound - 12 x 12 x 10mm - 10 µH - 1KHz - 6.5A - 18m Ohm.
Online Components:
Inductor Power Shielded Wirewound 10uH 20% 100KHz 16Q-Factor Ferrite 6.5A 18mOhm DCR T/R
Electro Sonic:
Inductor Power - Shielded - Wirewound - 12 x 12 x 10mm - 10 µH - 1KHz - 6.5A - ...
额定电流 6.5 A
容差 ±20 %
电感 10 µH
自谐频率 12 MHz
Q值 16
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤18 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.018 Ω
安装方式 Surface Mount
封装 12mm x 12mm x 10mm
长度 12 mm
宽度 12 mm
高度 10 mm
封装 12mm x 12mm x 10mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRR1210-100M Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MSS1210-103MED 线艺 | 功能相似 | SRR1210-100M和MSS1210-103MED的区别 |
