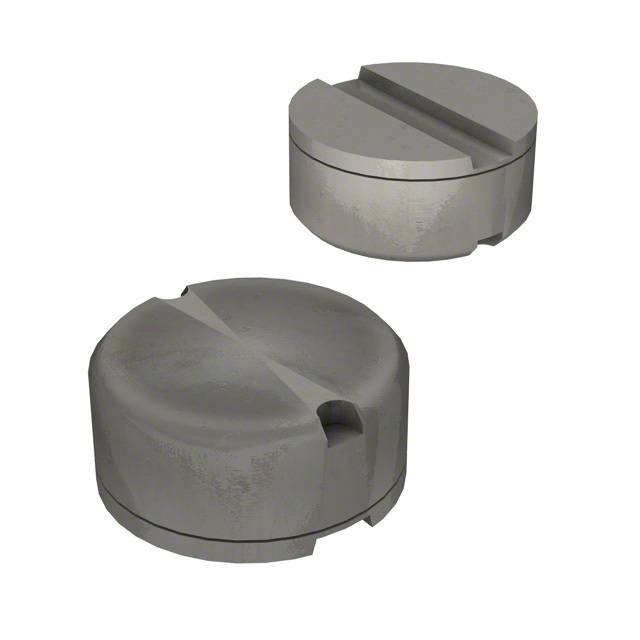

SRR0905-471K

SHIELDED SMD功率电感 Shielded SMD Power Inductors

屏蔽 绕线 器 1.5 欧姆最大 非标准

得捷:
FIXED IND 470UH 330MA 1.5OHM SMD

立创商城:
470uH ±10% 330mA 1.5Ω

艾睿:
This power SRR0905-471K surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 330mA typ with a maximum resistance of 1.5 Ohm. It has a tolerance of 10%. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 3MTyp Hz. This product is 4.8 mm tall with a diameter of 10.2 mm. It has an inductance of 470u H. This device utilizes wirewound technology.

安富利:
Ind Power Shielded Wirewound 470uH 10% 100KHz 26Q-Factor Ferrite 330mA T/R

Chip1Stop:
Ind Power Shielded Wirewound 470uH 10% 100KHz 26Q-Factor Ferrite 330mA T/R

Verical:
Inductor Power Shielded Wirewound 470uH 10% 100KHz 26Q-Factor Ferrite 0.33A 1.5Ohm DCR T/R
