SDR1307-270ML

BOURNS  SDR1307-270ML  表面贴装功率电感器, SDR1307系列, 27 µH, ± 20%, 非屏蔽, 0.06 ohm, 3.3 A

27 µH 无屏蔽 绕线 器 3.3 A 60 毫欧最大 非标准

立创商城:
27uH ±20% 3.3A 60mΩ

得捷:
FIXED IND 27UH 3.3A 60 MOHM SMD

贸泽:
Fixed Inductors 27uH 20% SMD 1307

e络盟:

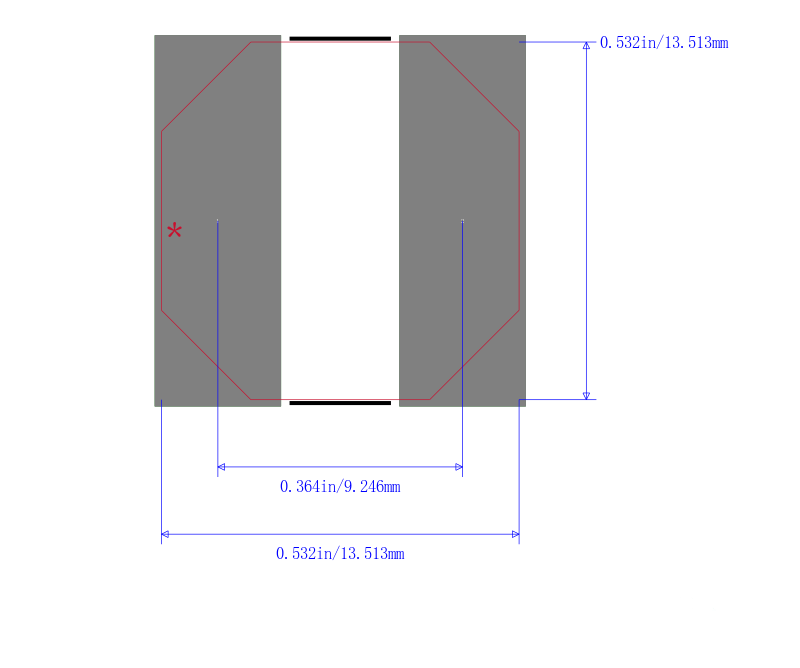

功率电感SMD, 27 µH, 3.3 A, 非屏蔽, 5.5 A, SDR1307系列, 13mm x 13mm x 7mm

艾睿:
This power SDR1307-270ML surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 11M Hz. This SMD inductor has a maximum DC current of 3.3 A with a maximum resistance of 60m Ohm. This device utilizes wirewound technology. It has an inductance of 27u H. It has a tolerance of 20%. This product is 7.3 mm tall with a diameter of 13.5 mm.

安富利:
Ind Power Wirewound 27uH 20% 100KHz 35Q-Factor Ferrite 3.3A T/R

Verical:
Inductor Power Unshielded Wirewound 27uH 20% 100KHz 35Q-Factor Ferrite 3.3A 0.06Ohm DCR T/R

MASTER:
Inductor Power Wirewound 27uH 20% 100KHz 35Q-Factor Ferrite 3.3A 60mOhm DCR T/R

Online Components:
Inductor Power Wirewound 27uH 20% 100KHz 35Q-Factor Ferrite 3.3A 60mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 27uH 20% 100KHz 35Q-Factor Ferrite 3.3A 60mOhm DCR T/R

Win Source:
FIXED IND 27UH 3.3A 60 MOHM SMD / 27 µH Unshielded Drum Core, Wirewound Inductor 3.3 A 60mOhm Max Nonstandard
