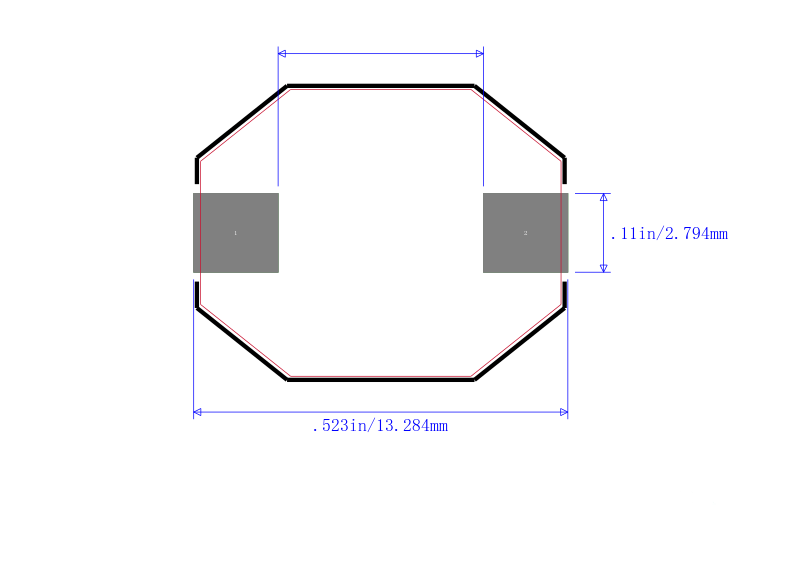

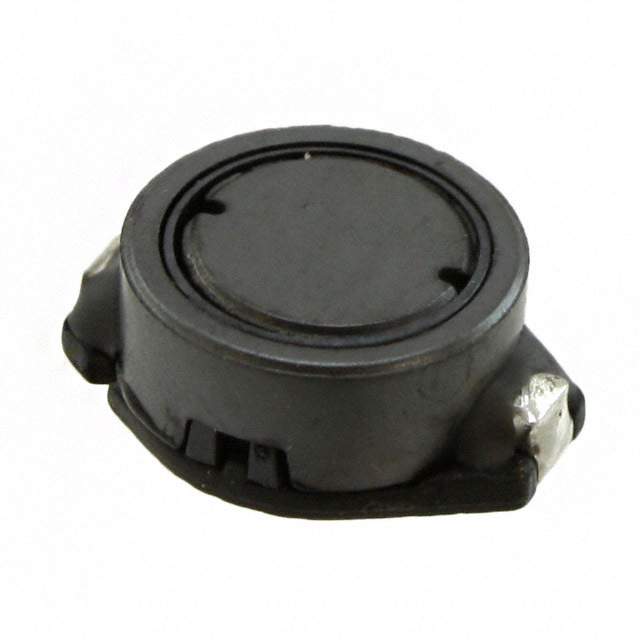

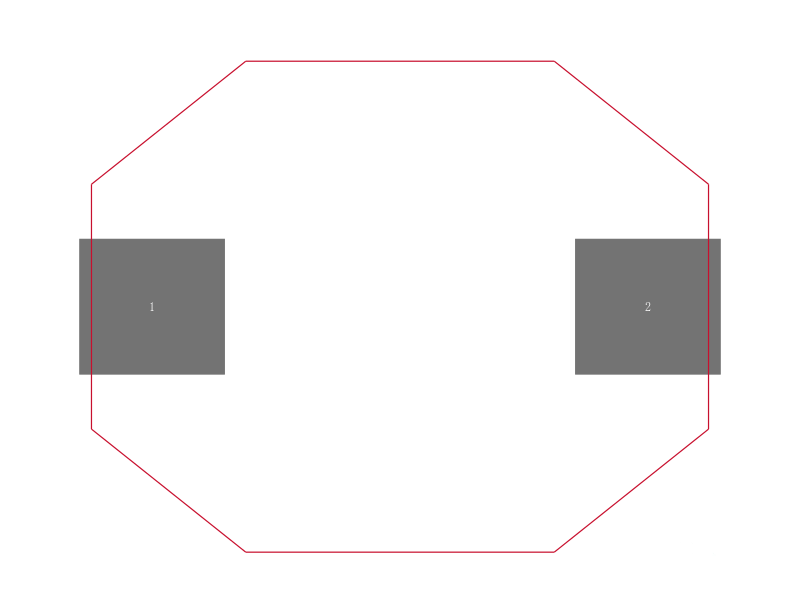

SRR1005-152K

BOURNS  SRR1005-152K  表面贴装功率电感器, SRR1005系列, 1.5 mH, ± 10%, 屏蔽, 5.2 ohm, 170 mA

Features

■ Available in E12 series

■ Unit height of 5.2mm

■ Current up to 4.5A

Applications

■ Input/output of DC/DC converters

■ Power supplies for:

  • Portable communication equipment

  • Camcorders

  • LCD TVs

  • Car radios

立创商城:
1.5mH ±10% 170mA 5.2Ω

得捷:
FIXED IND 1.5MH 170MA 5.2OHM SMD

e络盟:
功率电感SMD, 1.5 mH, 170 mA, 屏蔽, 240 mA, SRR1005系列, 12.7mm x 10mm x 5.2mm

艾睿:
Use this power SRR1005-152K surface mount inductor from Bourns to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 12.8 mm long, 5.2 mm tall and 10.2 mm deep. This device utilizes wirewound technology. It has an inductance of 1.5m H. It has a tolerance of 10%. This SMD inductor has a maximum DC current of 170m A with a maximum resistance of 5.2 Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 1.6M Hz.

Chip1Stop:
Ind Power Shielded Wirewound 1.5mH 10% 1KHz 53Q-Factor Ferrite 170mA T/R

Verical:
Inductor Power Shielded Wirewound 1500uH 10% 1KHz 53Q-Factor Ferrite 0.17A 5.2Ohm DCR T/R
