SDR6603-470M

BOURNS  SDR6603-470M  表面贴装功率电感器, SDR6603系列, 47 µH, ± 20%, 非屏蔽, 0.64 ohm, 500 mA

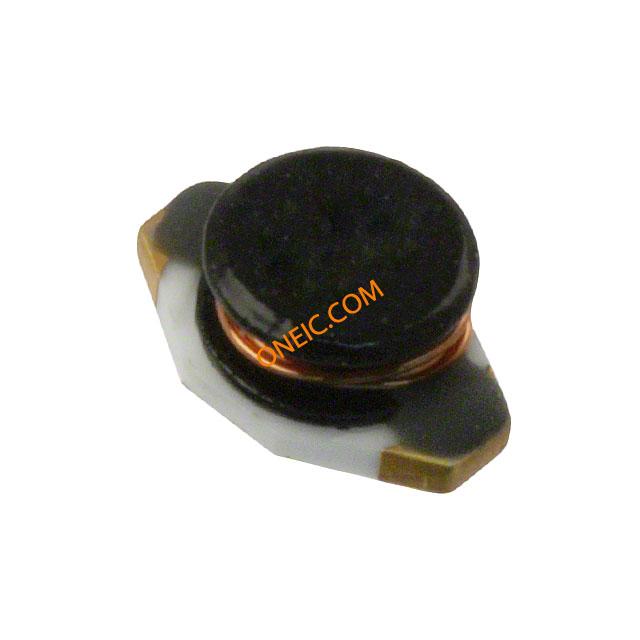

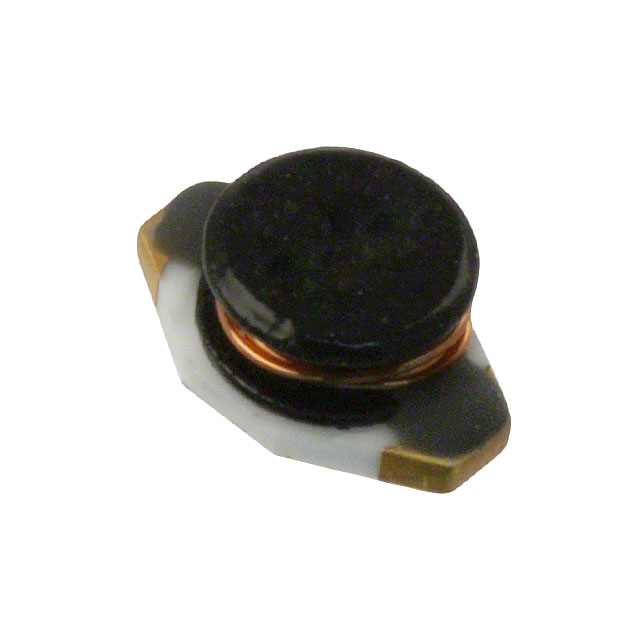

The SDR6603 series SMD Power Inductor with ferrite core and nickel/silver/gold termination. It has ceramic base, epoxy resin adhesive and an enamelled copper wire winding. It is suitable for input/output of DC/DC converters.

.

-40 to 125°C Operating temperature range

得捷:
FIXED IND 47UH 500MA 640MOHM SMD

立创商城:
47uH ±20% 500mA 640mΩ

贸泽:
Fixed Inductors 47uH 20% SMD 6603

e络盟:
功率电感SMD, 47 µH, 500 mA, 非屏蔽, 500 mA, SDR6603系列, 6.6mm x 4.45mm x 2.92mm

艾睿:
This power SDR6603-470M surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 20%. This product is 6.6 mm long, 2.92 mm tall and 4.45 mm deep. It has an inductance of 47u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 14MTyp Hz. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 640m Ohm.

安富利:
Ind Power Wirewound 47uH 20% 100KHz 15Q-Factor Ferrite 500mA T/R

Chip1Stop:
Ind Power Wirewound 47uH 20% 100KHz 15Q-Factor Ferrite 500mA T/R

Verical:
Inductor Power Unshielded Wirewound 47uH 20% 100KHz 15Q-Factor Ferrite 0.5A 0.64Ohm DCR T/R

Newark:
# BOURNS  SDR6603-470M  Surface Mount Power Inductor, SDR6603 Series, 47 H, 20%, Unshielded, 0.64 ohm, 500 mA

Online Components:
Inductor Power Wirewound 47uH 20% 100KHz 15Q-Factor Ferrite 500mA 640mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 47uH 20% 100KHz 15Q-Factor Ferrite 500mA 640mOhm DCR T/R
