SRR1208-151YL

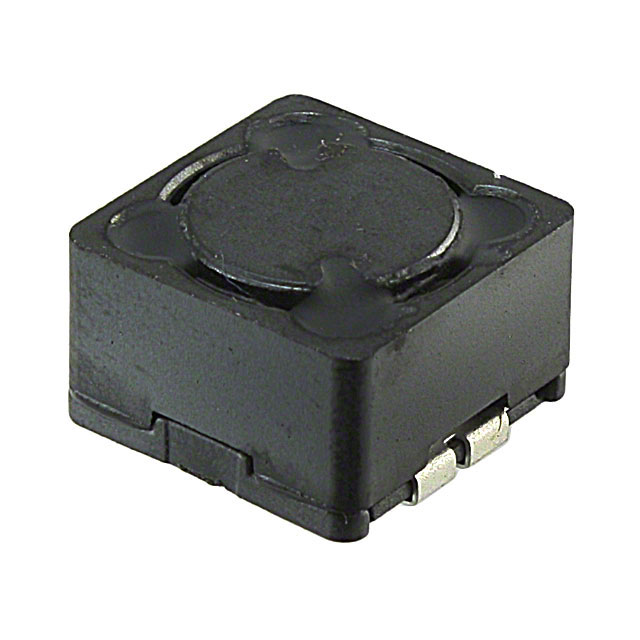

BOURNS  SRR1208-151YL  磁性屏蔽功率电感

SRR1208 Series Shielded High Power Inductors

** Features

**

* Ferrite DR and RI Core

* Current Up to 7.5 A

** Applications**

* Input/Output of DC/DC Converters

* Power Supplies for:

Portable Communication Equipment

Camcorders

LCD TVs

Car Radios

得捷:
FIXED IND 150UH 1.3A 240MOHM SMD

立创商城:
150uH ±15% 1.3A 240mΩ

艾睿:
Make any circuit look clean and compact using this power SRR1208-151YL surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has an inductance of 150u H. It has a tolerance of 15%. This product is 13 mm long, 8.5 mm tall and 13 mm deep. This device utilizes wirewound technology. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 3M Hz. This SMD inductor has a maximum DC current of 1.3 A with a maximum resistance of 240m Ohm.

Allied Electronics:
Inductor; Filter; Ind 150uH; Tol 15%; Cur 1.3A; SMT; Case 1208; DCR 0.24 Ohms

安富利:
Ind Power Shielded Wirewound 150uH 15% 1KHz 14Q-Factor Ferrite 1.3A T/R

Chip1Stop:
Ind Power Shielded Wirewound 150uH 15% 1KHz 14Q-Factor Ferrite 1.3A T/R

Verical:
Inductor Power Shielded Wirewound 150uH 15% 1KHz 14Q-Factor Ferrite 1.3A 0.24Ohm DCR T/R

Newark:
# BOURNS  SRR1208-151YL  Surface Mount Power Inductor, SRR1208 Series, 150 µH, 1.3 A, 1.72 A, Shielded, 0.24 ohm

MASTER:
Inductor Power Shielded Wirewound 150uH 15% 1KHz 14Q-Factor Ferrite 1.3A 240mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 150uH 15% 1KHz 14Q-Factor Ferrite 1.3A 240mOhm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 150uH 15% 1KHz 14Q-Factor Ferrite 1.3A 240mOhm DCR T/R
