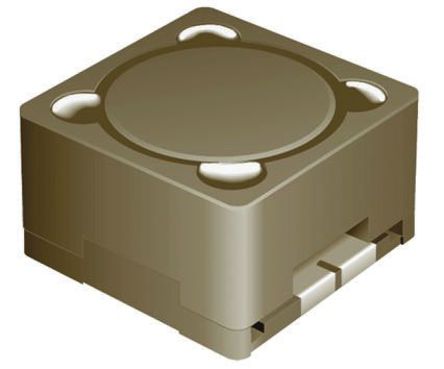

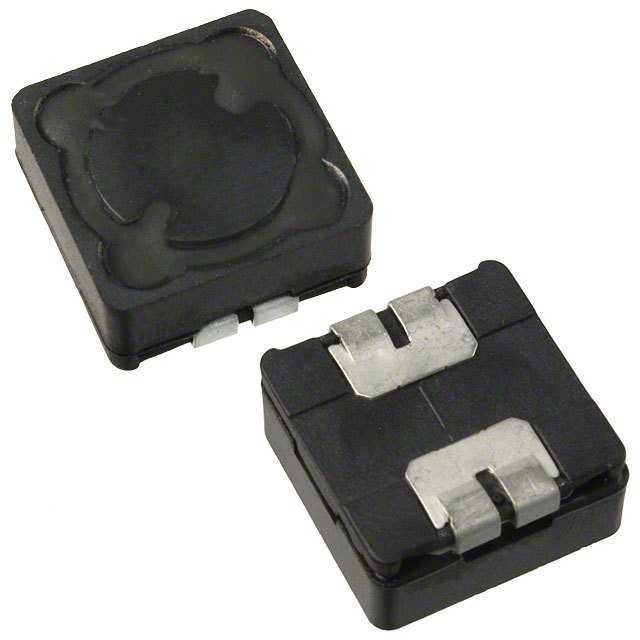

SRR1206-471KL

SRR1206 系列磁性屏蔽线绕电感器提供 E12 系列 装置高度 6.5mm 电流高达 6A 符合 RoHS 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

SRR1206 系列磁性屏蔽线绕器

提供 E12 系列

装置高度 6.5mm

电流高达 6A

符合 RoHS

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 470UH 500MA 970MOHM SM

欧时:
### SRR1206 系列磁性屏蔽线绕电感器提供 E12 系列 装置高度 6.5mm 电流高达 6A 符合 RoHS 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

艾睿:

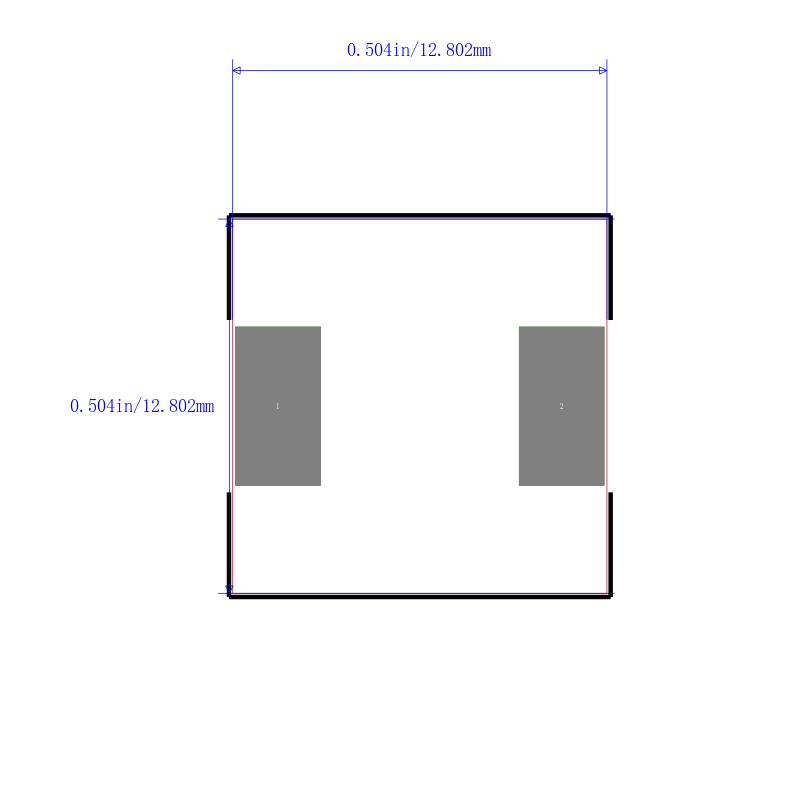

This power SRR1206-471KL surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device is made with wirewound technology. It has an inductance of 470u H. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 970m Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 2.5M Hz. This product is 13 mm long, 6.5 mm tall and 13 mm deep. It has a tolerance of 10%.

Allied Electronics:
WireWound SMD Inductor w/ Ferrite Core, 470 uH +/-10% 500mA Idc Q:12

安富利:
Ind Power Shielded Wirewound 470uH 10% 1KHz 12Q-Factor Ferrite 500mA T/R

Chip1Stop:
Inductor Power Shielded Wirewound 470uH 10% 1KHz 12Q-Factor Ferrite 500mA 970mOhm DCR T/R

Verical:
Inductor Power Shielded Wirewound 470uH 10% 1KHz 12Q-Factor Ferrite 500mA 970mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 470uH 10% 1KHz 12Q-Factor Ferrite 500mA 970mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 470uH 10% 1KHz 12Q-Factor Ferrite 500mA 970mOhm DCR T/R
