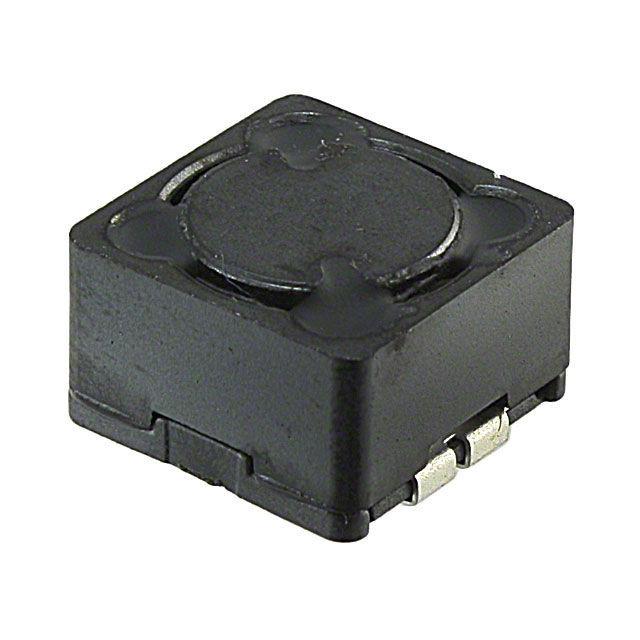

SRR1208-682KL

BOURNS  SRR1208-682KL  表面贴装功率电感器, SRR1208系列, 6.8 mH, ± 10%, 屏蔽, 15.2 ohm, 220 mA

Features

■ Available in E6 series

■ Unit height of 8.5 mm

■ Current up to 7.5 A

.

Applications

■ Input/output of DC/DC converters

■ Power supplies for:

   • Portable communication equipment

   • Camcorders

   • LCD TVs

   • Car radios

得捷:
FIXED IND 6.8MH 220MA 15.2OHM SM

立创商城:
6.8mH ±10% 220mA 15.2Ω

e络盟:
功率电感SMD, 6.8 mH, 220 mA, 屏蔽, 250 mA, SRR1208系列, 12.7mm x 12.7mm x 8.5mm

艾睿:
This power SRR1208-682KL surface mount inductor from Bourns is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 380K Hz. It has an inductance of 6.8m H. It has a tolerance of 10%. This device utilizes wirewound technology. This product is 13 mm long, 8.5 mm tall and 13 mm deep. This SMD inductor has a maximum DC current of 220m A with a maximum resistance of 15.2 Ohm.

安富利:
Ind Power Shielded Wirewound 6.8mH 10% 1KHz 18Q-Factor Ferrite 220mA T/R

Verical:
Inductor Power Shielded Wirewound 6800uH 10% 1KHz 18Q-Factor Ferrite 0.22A 15.2Ohm DCR T/R

Newark:
# BOURNS  SRR1208-682KL  Surface Mount Power Inductor, SRR1208 Series, 6.8 mH, 10%, Shielded, 15.2 ohm, 220 mA

Online Components:
Inductor Power Shielded Wirewound 6.8mH 10% 1KHz 18Q-Factor Ferrite 220mA 15.2Ohm DCR Automotive T/R

Electro Sonic:
Inductor Power Shielded Wirewound 6.8mH 10% 1KHz 18Q-Factor Ferrite 220mA 15.2Ohm DCR T/R
