具有三态输出翻两番总线缓冲器 QUADRUPLE BUS BUFFERS WITH 3-STATE OUTPUTS
The is a quadruple Bus Buffer features 3-state outputs that, when enabled, has the low impedance characteristics of a TTL output with additional drive capability at high logic levels to permit driving heavily loaded bus lines without external pull-up resistors. When disabled, both output transistors are turned OFF, presenting a high-impedance state to the bus so the output will act neither as a significant load nor as a driver. The LS126A device outputs are disabled when G is low.
电源电压DC 4.75V ~ 5.25V
输出接口数 4
电路数 4
通道数 4

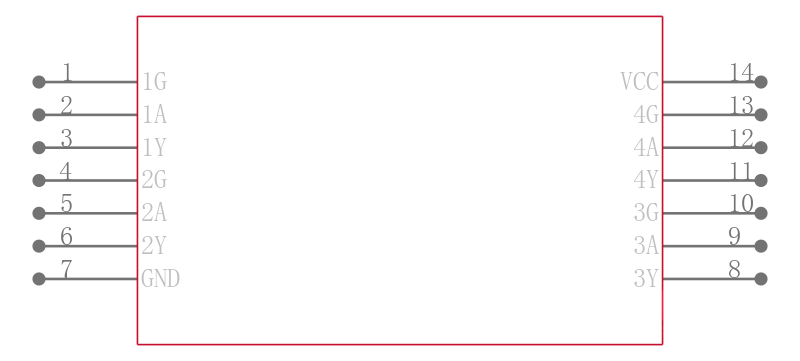

针脚数 14
位数 4
传送延迟时间 18.0 ns
电压波节 5.00 V
静态电流 12.0 mA
输出电流驱动 -108 µA
输入数 4
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Through Hole
引脚数 14

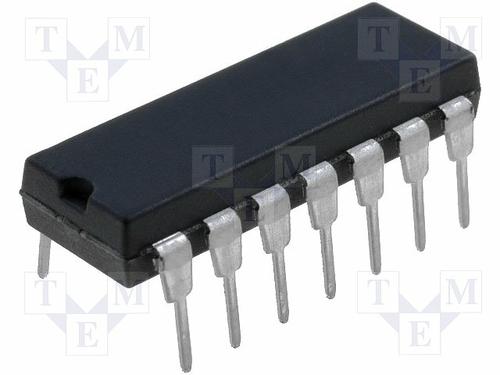

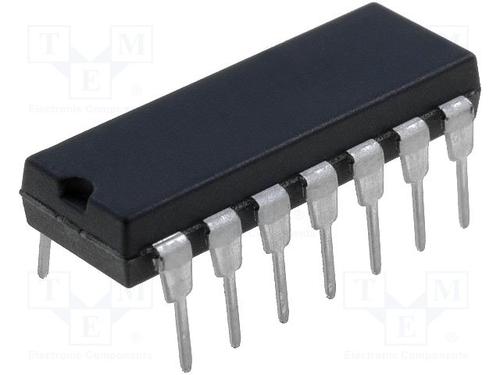

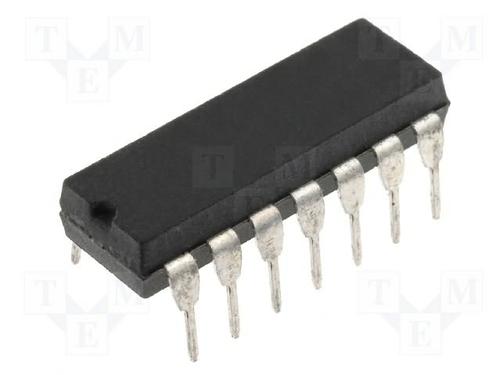

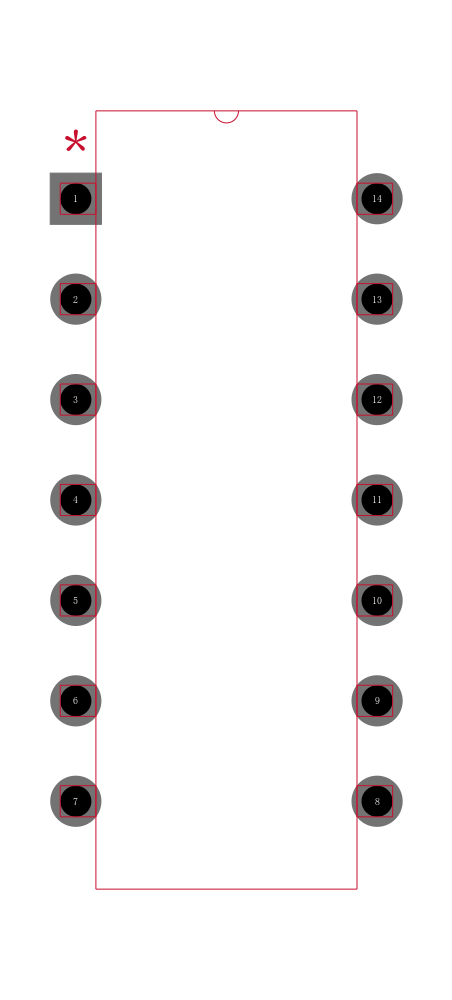

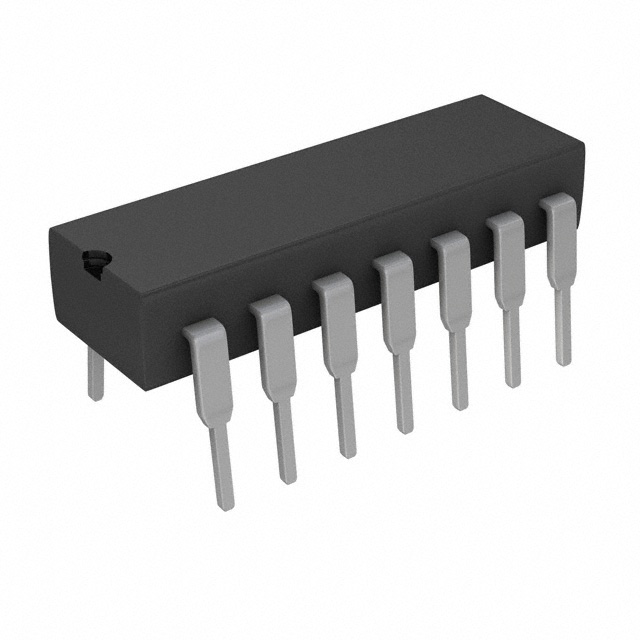

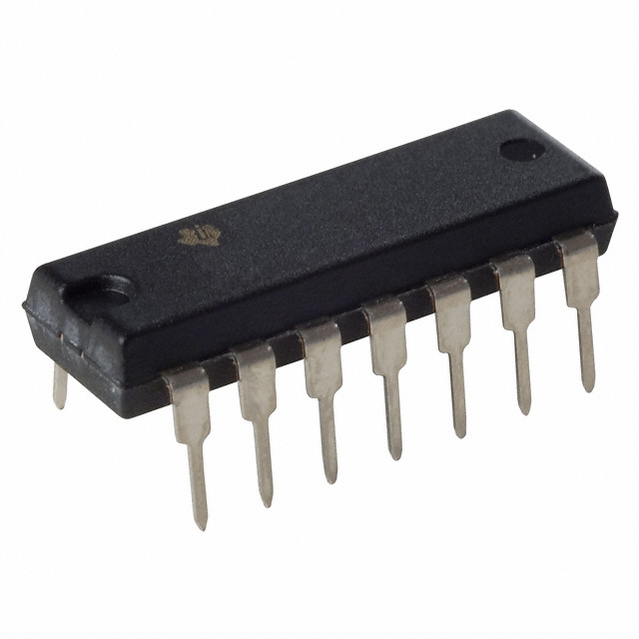

封装 PDIP-14
长度 19.05 mm
宽度 6.35 mm
高度 3.3 mm
封装 PDIP-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
制造应用 信号处理, 工业, 自动化与过程控制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LS126AN TI 德州仪器 | 当前型号 | 当前型号 |
SN74LS126ANE4 德州仪器 | 完全替代 | SN74LS126AN和SN74LS126ANE4的区别 |
SN74LS126ADG4 德州仪器 | 完全替代 | SN74LS126AN和SN74LS126ADG4的区别 |
SN74LS126ADRE4 德州仪器 | 完全替代 | SN74LS126AN和SN74LS126ADRE4的区别 |
