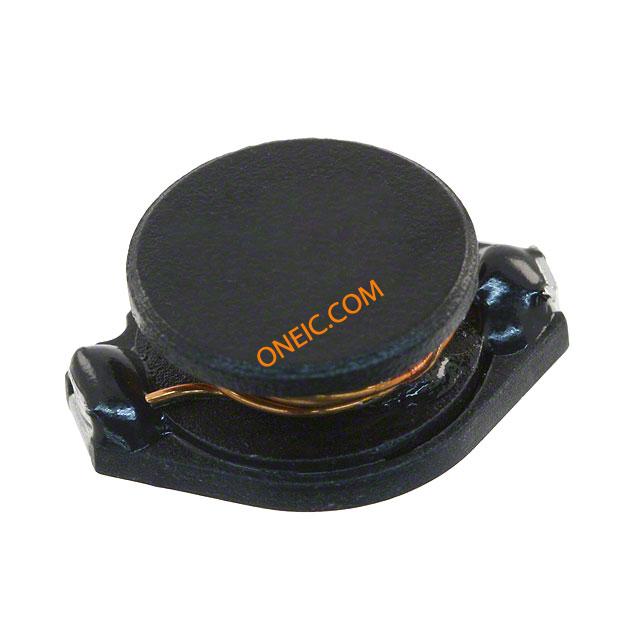

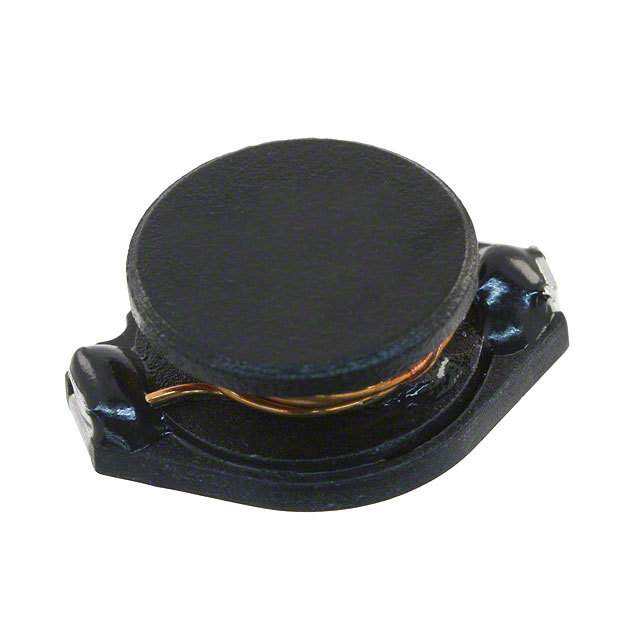

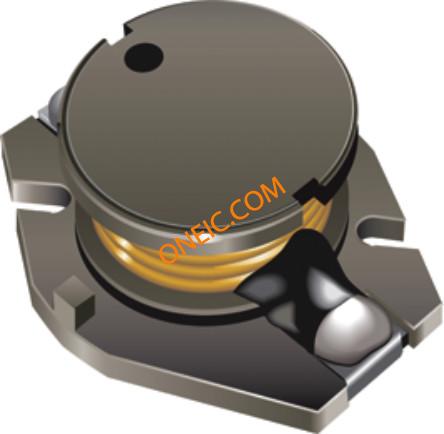

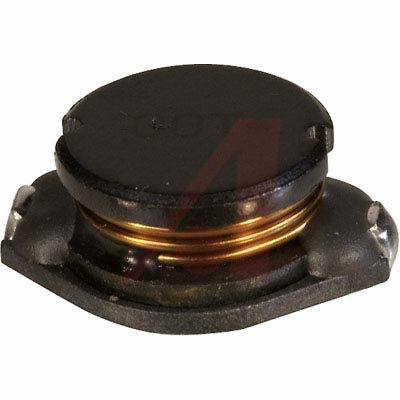

SDR1806-100ML

BOURNS  SDR1806-100ML.  功率电感, 10uH, 10A 20% 25MHz

SDR1806 系列线绕扼流圈

提供 E6 系列

薄型，仅 6.6mm

低至 1μH

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

得捷:
FIXED IND 10UH 5.3A 25 MOHM SMD

立创商城:
10uH ±20% 5.3A 25mΩ

欧时:
Bourns SDR1806 系列 铁氧体芯材 10 μH 绕线贴片电感器 SDR1806-100ML, ±20%容差, 5.3A Idc Q:22

e络盟:
功率电感SMD, 10 µH, 5.3 A, 非屏蔽, 10 A, SDR1806系列, 18.3mm x 14mm x 6.6mm

艾睿:
Use this power SDR1806-100ML surface mount inductor from Bourns to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device utilizes wirewound technology. It has an inductance of 10u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 25MTyp Hz. This product is 18.6 mm long, 6.9 mm tall and 14.3 mm deep. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 5.3 A with a maximum resistance of 25m Ohm.

Allied Electronics:
Inductor; Filter; Ind 10uH; Tol 20%; Cur 5.3A; SMT; Case 1806; DCR 25 Milliohms

安富利:
Ind Power Wirewound 10uH 20% 100KHz 22Q-Factor Ferrite 5.3A T/R

Chip1Stop:
Inductor Power Wirewound 10uH 20% 100KHz 22Q-Factor Ferrite 5.3A 25mOhm DCR T/R

Verical:
Inductor Power Unshielded Wirewound 10uH 20% 100KHz 22Q-Factor Ferrite 5.3A 0.025Ohm DCR T/R

Newark:
# BOURNS  SDR1806-100ML  Surface Mount Power Inductor, SDR1806 Series, 10 µH, 5.3 A, 10 A, Unshielded, 0.025 ohm

MASTER:
Inductor Power Wirewound 10uH 20% 100KHz 22Q-Factor Ferrite 5.3A 25mOhm DCR T/R

Online Components:
Inductor Power Wirewound 10uH 20% 100KHz 22Q-Factor Ferrite 5.3A 25mOhm DCR T/R

Electro Sonic:
Inductor Power Wirewound 10uH 20% 100KHz 22Q-Factor Ferrite 5.3A 25mOhm DCR T/R
