SLF6028 系列磁性屏蔽线绕扼流圈薄型表面安装磁性屏蔽电源线路电感器,用于减少 EMC 应用包括便携式电话机、个人计算机、硬盘驱动器及其他电子设备 ### TDK 非标准 SMT 电感器(扼流圈)
固定器
欧时:
TDK SLF 系列 68 μH 绕线贴片电感器 SLF6028T-680MR50-PF, ±20%容差, 780mA Idc, 290mΩ最大直流电阻
立创商城:
68uH ±20% 348mΩ
得捷:
FIXED IND 68UH 780MA 348MOHM SMD
贸泽:
固定电感器 SMD 68uH 0.5amps
艾睿:
This power SLF6028T-680MR50-PF surface mount inductor from TDK is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 105 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 6.2 mm long, 3 mm tall and 6.2 mm deep. This SMD inductor has a maximum DC current of 780mA typ with a maximum resistance of 348m Ohm. It has an inductance of 68u H. This device utilizes wirewound technology. It has a tolerance of 20%. Its test frequency is 100K Hz.
安富利:
Ind Power Shielded Wirewound 68uH 20% 100KHz 780mA 2424 T/R
Chip1Stop:
Ind Power Shielded Wirewound 68uH 20% 100KHz 780mA 2424 T/R
Verical:
Inductor Power Shielded Wirewound 68uH 20% 100KHz Ferrite 0.78A 0.348Ohm DCR 2424 T/R
Electro Sonic:
Inductor Power Shielded Wirewound 68uH 20% 100KHz Ferrite 780mA 348mOhm DCR 2424 T/R
Win Source:
68μH Shielded Wirewound Inductor 780mA 348 mOhm Max Nonstandard
额定电流 780 mA
容差 ±20 %
电感 68 µH
产品系列 SLF
阻值偏差 ±20 %
屏蔽 Yes
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤348 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 290 mΩ
安装方式 Surface Mount

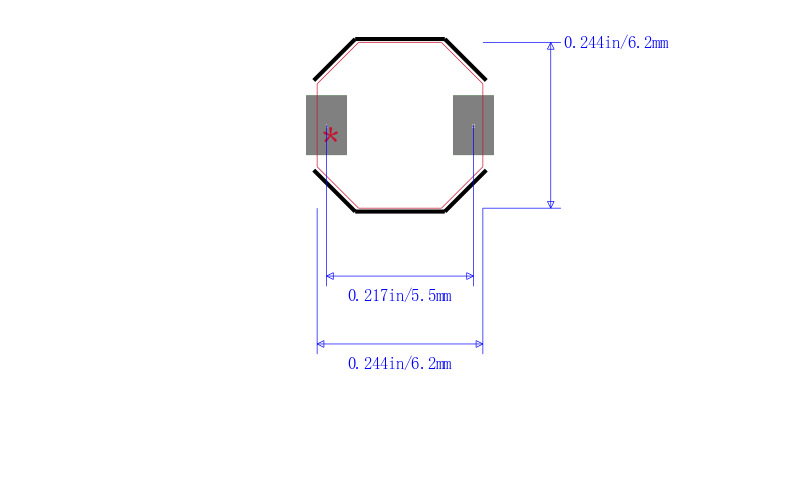

封装 2424
长度 6 mm
宽度 6 mm
高度 2.8 mm
封装 2424
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SLF6028T-680MR50-PF TDK 东电化 | 当前型号 | 当前型号 |
SLF6028T-680MR50 东电化 | 功能相似 | SLF6028T-680MR50-PF和SLF6028T-680MR50的区别 |
