3.3 -V ABT八路缓冲器/驱动器，具有三态输出 3.3-V ABT OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS
This buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. It has 8 channels per chip. This inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V.
电源电压DC 2.70V ~ 3.60V
输出接口数 8
电路数 2
通道数 8
位数 8
传送延迟时间 3.80 ns
电压波节 3.30 V, 2.70 V
输出电流驱动 -500 µA
输入数 4
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount

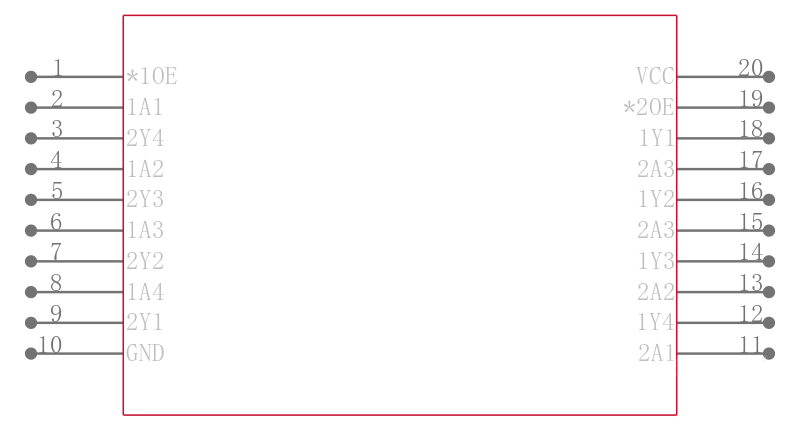

引脚数 20
封装 SOIC-20
封装 SOIC-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVT240ADW TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVTH240DWR 德州仪器 | 完全替代 | SN74LVT240ADW和SN74LVTH240DWR的区别 |
SN74LVT240ADWRE4 德州仪器 | 完全替代 | SN74LVT240ADW和SN74LVT240ADWRE4的区别 |
SN74LVTH240DWE4 德州仪器 | 完全替代 | SN74LVT240ADW和SN74LVTH240DWE4的区别 |
