SRR1240-270M

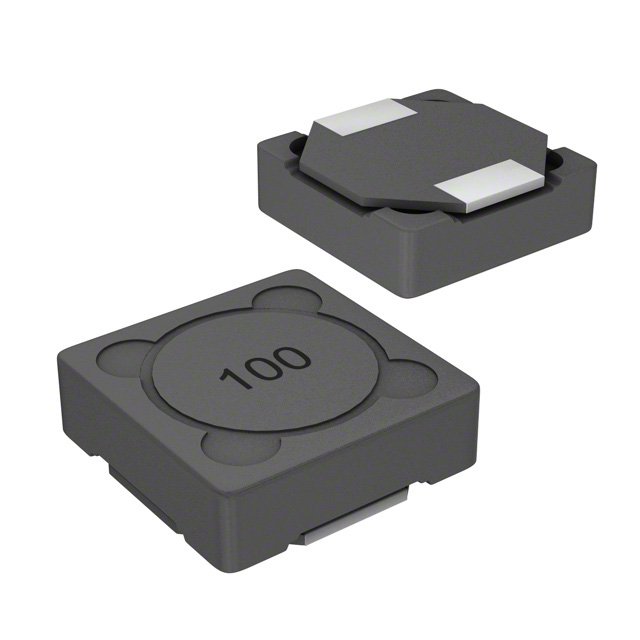

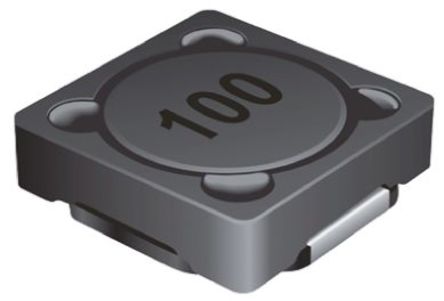

BOURNS  SRR1240-270M  表面贴装功率电感器, SRR1240系列, 27 µH, ± 20%, 屏蔽, 0.085 ohm, 2.55 A

SRR1240 系列磁性屏蔽线绕器

Bourns SRR1240 系列贴片屏蔽式功率电感器为薄型，仅 4.5mm。 应用包括直流/直流转换器和电源的输入/输出，适用于：便携式通信设备；摄像机；液晶电视；汽车收音机

高电流额定值

特别适合高频率

得捷:
FIXED IND 27UH 2.55A 85 MOHM SMD

欧时:
### SRR1240 系列磁性屏蔽线绕电感器Bourns SRR1240 系列贴片屏蔽式功率电感器为薄型，仅 4.5mm。 应用包括直流/直流转换器和电源的输入/输出，适用于：便携式通信设备；摄像机；液晶电视；汽车收音机高电流额定值 特别适合高频率 ### Bourns 非标准表面安装电感器（扼流圈）

立创商城:
27uH ±20% 2.55A 85mΩ

e络盟:

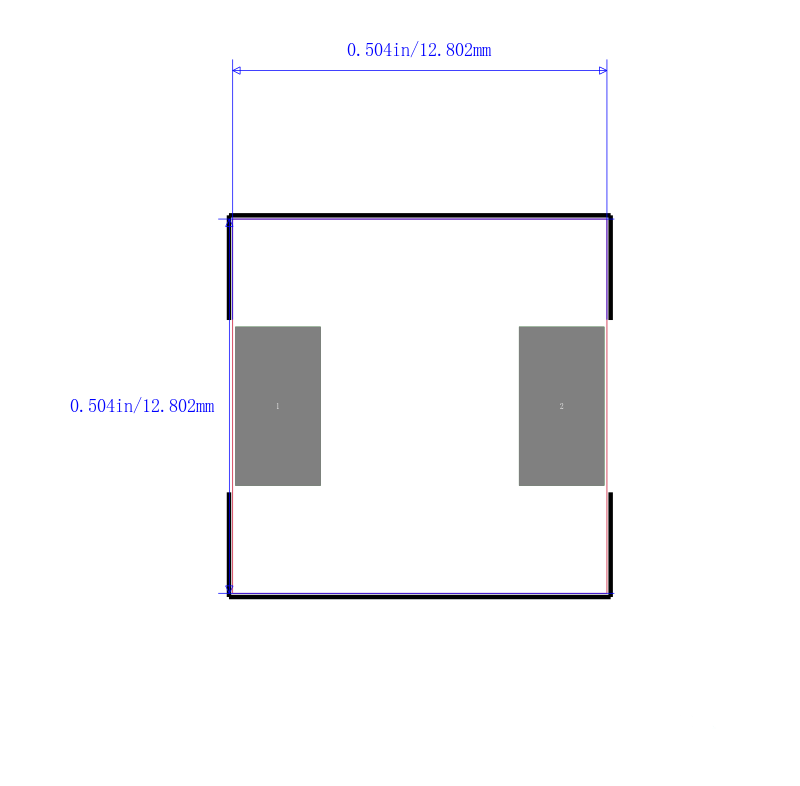

功率电感SMD, 27 µH, 2.55 A, 屏蔽, 2.35 A, SRR1240系列, 12.5mm x 12.5mm x 4mm

艾睿:
This power SRR1240-270M surface mount inductor from Bourns is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 12.8 mm long, 4.5 mm tall and 12.8 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 15.5MTyp Hz. This device is made with wirewound technology. It has a tolerance of 20%. It has an inductance of 27u H. This SMD inductor has a maximum DC current of 2.55 A with a maximum resistance of 85m Ohm.

Allied Electronics:
WireWound SMD Inductor w/ Ferrite Core; 27 uH +/-20% 2.55A Idc Q:16

安富利:
Ind Power Shielded Wirewound 27uH 20% 100KHz 16Q-Factor Ferrite 2.55A T/R

Verical:
Inductor Power Shielded Wirewound 27uH 20% 100KHz 16Q-Factor Ferrite 2.55A 0.085Ohm DCR T/R

Newark:
# BOURNS  SRR1240-270M  Surface Mount Power Inductor, SRR1240 Series, 27 H, 20%, Shielded, 0.085 ohm, 2.55 A

Online Components:
Inductor Power Shielded Wirewound 27uH 20% 100KHz 16Q-Factor Ferrite 2.55A 85mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 27uH 20% 100KHz 16Q-Factor Ferrite 2.55A 85mOhm DCR T/R
