16位缓冲器/驱动器，具有三态输出 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS
Amplify analog and digital signals by driving the input to the transmission line with this buffer and line driver from Texas Instruments. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 125 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V. It has 16 channels per chip.
电源电压DC 2.00V ~ 3.60V
输出接口数 16
通道数 16
位数 16
传送延迟时间 5.20 ns
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输出电流驱动 -1.00 mA
输入数 16
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.65 V
安装方式 Surface Mount

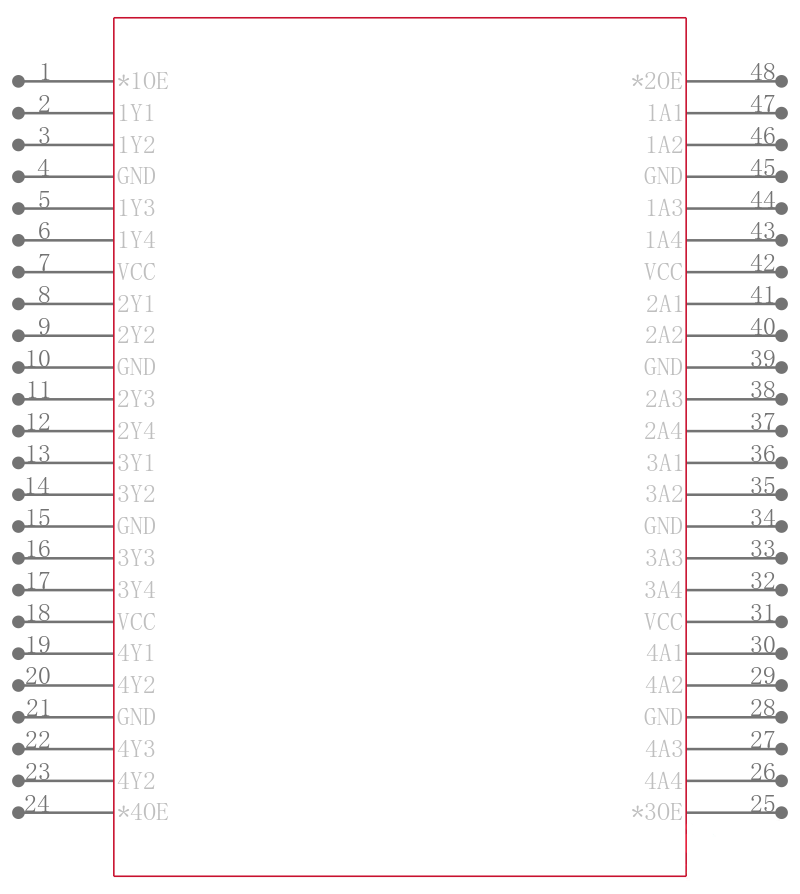

引脚数 48
封装 TSSOP-48
长度 12.5 mm
宽度 6.1 mm
高度 1.15 mm
封装 TSSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC16244ADGG TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC16244ADGGR 德州仪器 | 类似代替 | SN74LVC16244ADGG和SN74LVC16244ADGGR的区别 |
SN74LVCH162244AGR 德州仪器 | 类似代替 | SN74LVC16244ADGG和SN74LVCH162244AGR的区别 |
SN74LVCH16244ADGGR 德州仪器 | 类似代替 | SN74LVC16244ADGG和SN74LVCH16244ADGGR的区别 |
