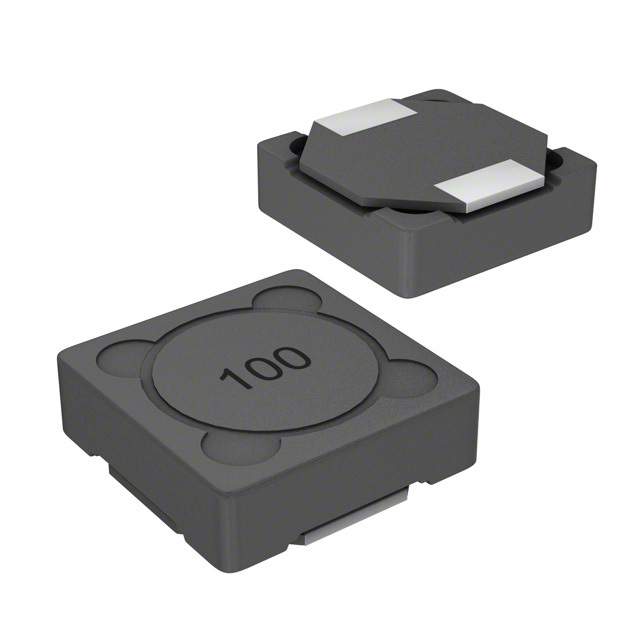

BOURNS SRR1240-471K 表面贴装功率电感器, SRR1240系列, 470 µH, ± 10%, 屏蔽, 1.35 ohm, 620 mA
Inductor Power Shielded Wirewound 470uH 10% 100KHz 12Q-Factor Ferrite 620mA 1.35Ohm DCR T/R
立创商城:
470uH ±10% 620mA 1.35Ω
得捷:
FIXED IND 470UH 620MA 1.35OHM SM
e络盟:
功率电感SMD, 470 µH, 620 mA, 屏蔽, 600 mA, SRR1240系列, 12.5mm x 12.5mm x 4mm
艾睿:
This power SRR1240-471K surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 470u H. This SMD inductor has a maximum DC current of 620m A with a maximum resistance of 1.35 Ohm. This product is 12.8 mm long, 4.5 mm tall and 12.8 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 4.5MTyp Hz. This device is made with wirewound technology. It has a tolerance of 10%.
安富利:
Ind Power Shielded Wirewound 470uH 10% 100KHz 12Q-Factor Ferrite 620mA T/R
Chip1Stop:
Inductor Power Shielded Wirewound 470uH 10% 100KHz 12Q-Factor Ferrite 620mA 1.35Ohm DCR T/R
Verical:
Inductor Power Shielded Wirewound 470uH 10% 100KHz 12Q-Factor Ferrite 0.62A 1.35Ohm DCR T/R
Newark:
# BOURNS SRR1240-471K Surface Mount Power Inductor, SRR1240 Series, 470 H, 10%, Shielded, 1.35 ohm, 620 mA
Online Components:
Inductor Power Shielded Wirewound 470uH 10% 100KHz 12Q-Factor Ferrite 620mA 1.35Ohm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 470uH 10% 100KHz 12Q-Factor Ferrite 620mA 1.35Ohm DCR T/R
额定电流 620 mA
容差 ±10 %
电感 470 µH
自谐频率 4.5 MHz
Q值 12.0
电感公差 ±10 %
测试频率 100 kHz
电阻DC) 1.35 Ω
额定电流DC 600 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 1.35 Ω
安装方式 Surface Mount
引脚数 2

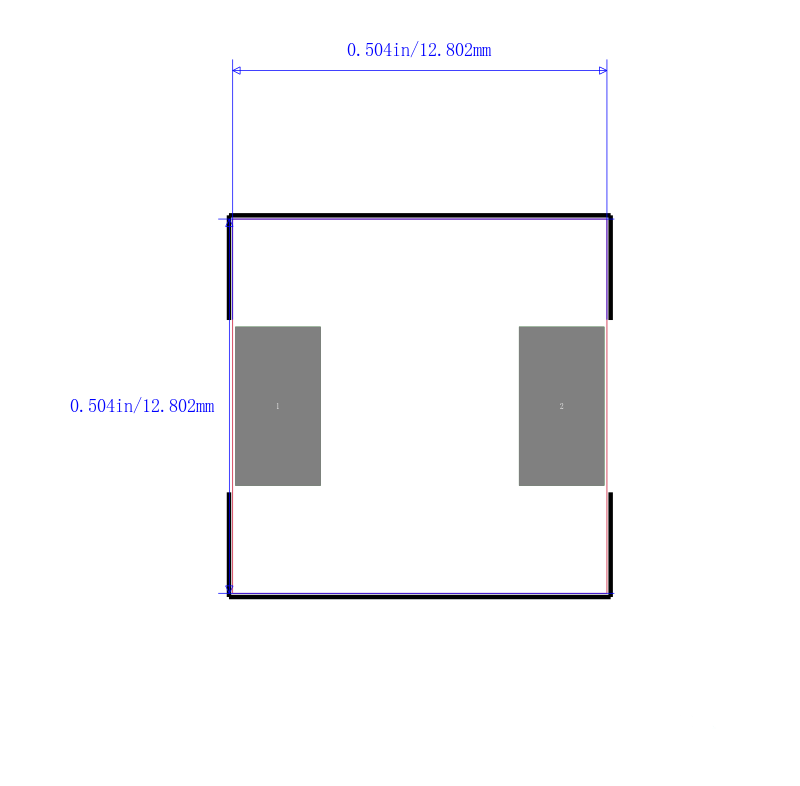

封装 12.5mm x 12.5mm x 4mm
高度 4.5 mm
封装 12.5mm x 12.5mm x 4mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRR1240-471K Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MSS1246-474KLB 线艺 | 功能相似 | SRR1240-471K和MSS1246-474KLB的区别 |
MSS1246T-474KLB 线艺 | 功能相似 | SRR1240-471K和MSS1246T-474KLB的区别 |
