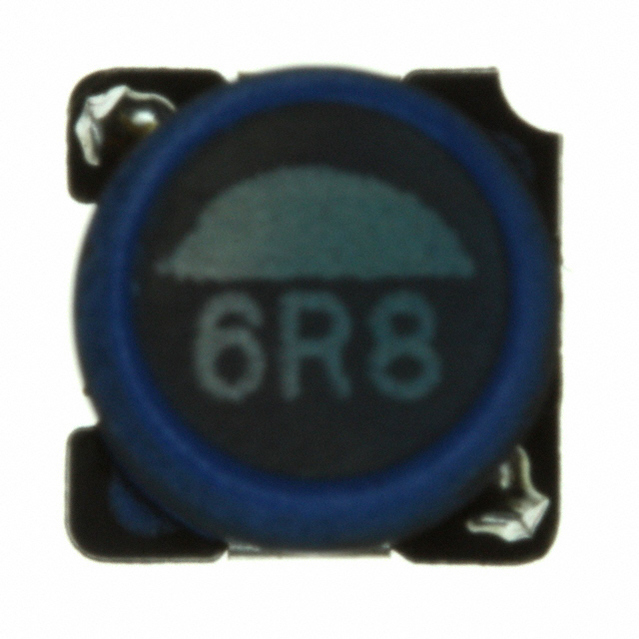

SLF6045T-6R8N2R0-3PF

TDK  SLF6045T-6R8N2R0-3PF  电源线电感, 6.8uH, 2A, 30%

固定器

得捷:
FIXED IND 6.8UH 2.8A 42.9MOHM SM

立创商城:
6.8uH ±30% 42.9mΩ

e络盟:
功率电感SMD, 6.8 µH, 2.8 A, 绕线, 2 A, SLF Series, 6mm x 6mm x 4.5mm

艾睿:
This power SLF6045T-6R8N2R0-3PF surface mount inductor from TDK is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device is made with wirewound technology. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 2.8 A with a maximum resistance of 42.9m Ohm. It has an inductance of 6.8u H. This product is 6.2 mm long, 4.8 mm tall and 6.2 mm deep.

安富利:
Ind Power Shielded Wirewound 6.8uH 30% 100KHz 2.8A 2424 T/R

Chip1Stop:
Ind Power Shielded Wirewound 6.8uH 30% 100KHz 2.8A 2424 T/R

Verical:
Inductor Power Shielded Wirewound 6.8uH 30% 100KHz Ferrite 2.8A 0.0429Ohm DCR 2424 T/R

Newark:
# TDK  SLF6045T-6R8N2R0-3PF  Surface Mount Power Inductor, SLF Series, 6.8 µH, 2.8 A, 2 A, Wirewound, 0.033 ohm

Win Source:
6.8μH Shielded Wirewound Inductor 2.8A 42.9 mOhm Max Nonstandard
