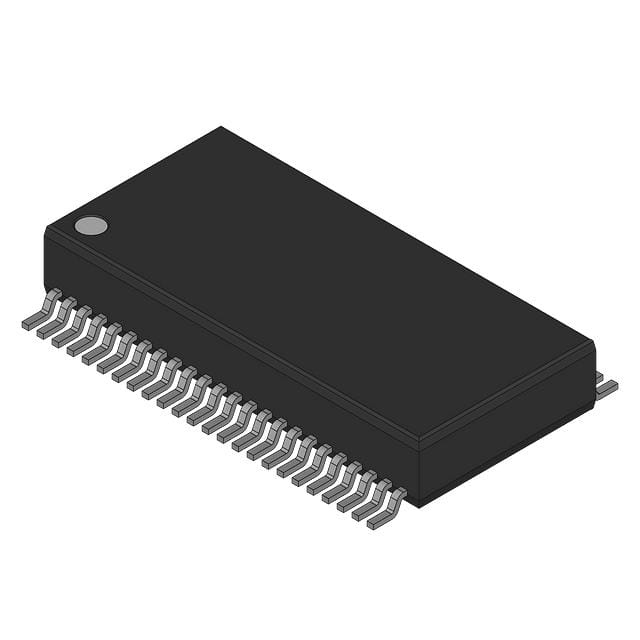

SN74AHC16541DL

16位缓冲器/驱动器，具有三态输出 16-BIT BUFFERS/DRIVERS WITH 3-STATE OUTPUTS

The is a non-inverting 16-bit Buffer composed of two 8-bit sections with separate output-enable signals. For either 8-bit buffer section, the two output-enable inputs must be low for the corresponding Y outputs to be active. If either output-enable input is high, the outputs of that 8-bit buffer section are in the high-impedance state. To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pull-up resistor and the minimum value of the resistor is determined by the current-sinking capability of the driver.

.

EPIC™ Enhanced-Performance Implanted CMOS process

.

Distributed VCC and GND pins minimize high-speed switching noise

.

Flow-through architecture optimizes PCB layout

.

Latch-up performance exceeds 250mA per JESD 17

.

Green product and no Sb/Br
