SN74LVT16244BDL

3.3 -V ABT 16位缓冲器/驱动器，具有三态输出 3.3-V ABT 16-BIT BUFFERS/DRIVERS WITH 3-STATE OUTPUTS

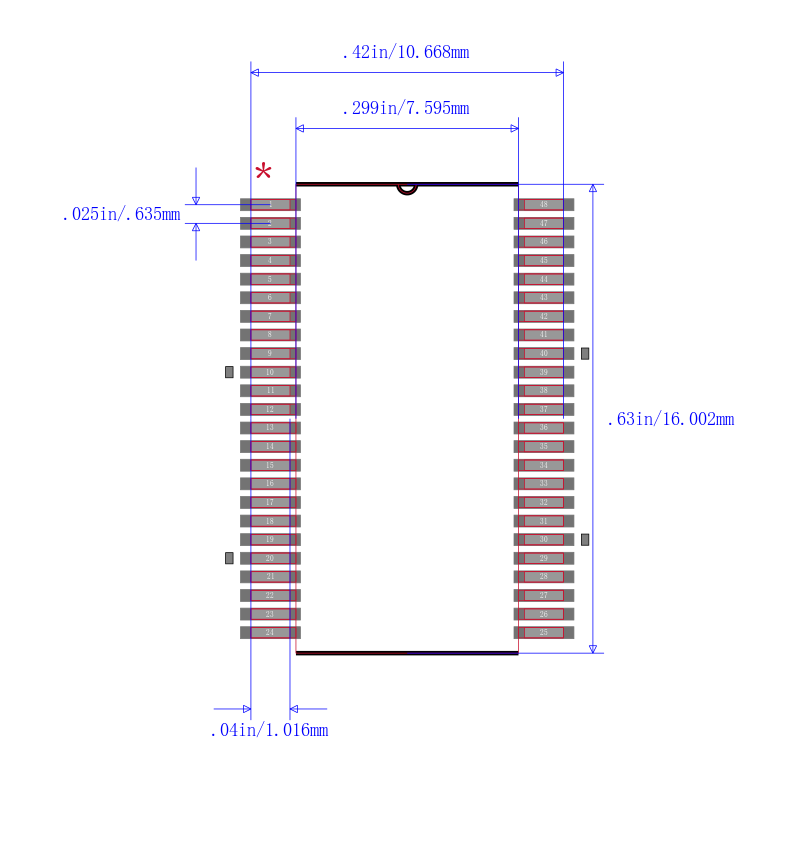

The is a 16-bit Buffer/Line Driver with 3-state outputs. It is designed for low-voltage 3.3V VCC operation but with the capability to provide a TTL interface to a 5V system environment. This device can be used as four 4-bit buffers, two 8-bit buffers or one 16-bit buffer. This device provides true outputs and symmetrical active-low output-enable OE inputs. When VCC is between 0 and 1.5V, the device is in the high-impedance state during power-up/power-down. However, to ensure the high-impedance state above 1.5V, OE should be tied to VCC through a pull-up resistor and the minimum value of the resistor is determined by the current-sinking capability of the driver. The IOFF circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

.

Supports mixed-mode signal operation

.

IOFF and power-up 3-state support hot insertion

.

Latch-up performance exceeds 100mA per JESD 78, class II

.

State-of-the-art advanced BiCMOS technology design for 3.3V operation/low static-power dissipation

.

Support unregulated battery operation down to 2.7V

.

<0.8V at VCC = 3.3V, TA = 25°C VOLP output ground bounce

.

Green product and no Sb/Br
