四路总线缓冲器闸具有三态输出 QUADRUPLE BUS BUFFER GATE WITH 3-STATE OUTPUTS
This buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 4 channels per chip.
电源电压DC 4.50V ~ 5.50V
输出接口数 4
通道数 4
位数 4
传送延迟时间 7.40 ns
电压波节 5.00 V
输出电流驱动 -234 µA
输入数 4
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount

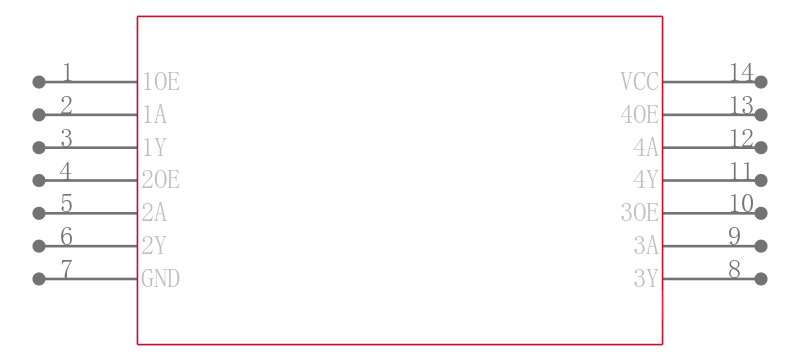

引脚数 14
封装 SOIC-14
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN64BCT126AD TI 德州仪器 | 当前型号 | 当前型号 |
SN64BCT126ADR 德州仪器 | 完全替代 | SN64BCT126AD和SN64BCT126ADR的区别 |
SN74BCT126AN 德州仪器 | 完全替代 | SN64BCT126AD和SN74BCT126AN的区别 |
SN64BCT126ADRG4 德州仪器 | 完全替代 | SN64BCT126AD和SN64BCT126ADRG4的区别 |
