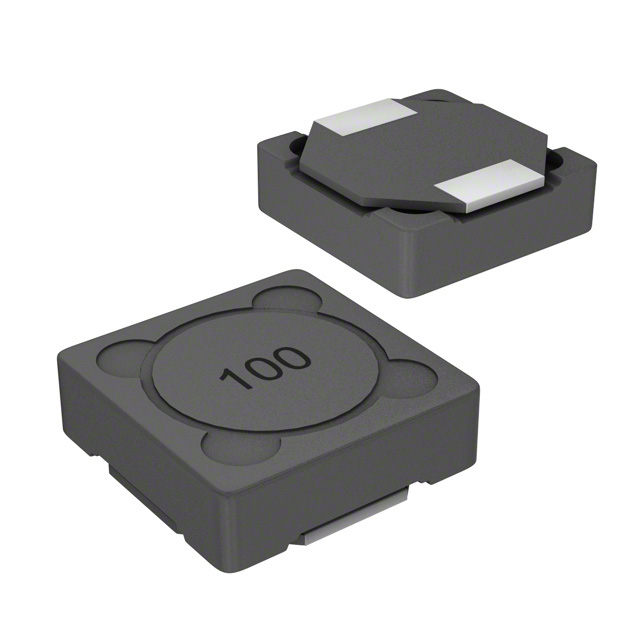

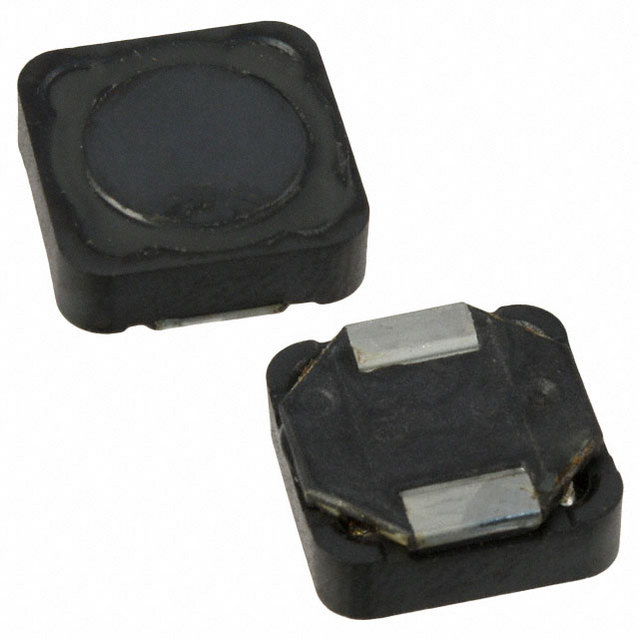

SRR1240-181K

BOURNS  SRR1240-181K  表面贴装功率电感器, SRR1240系列, 180 µH, ± 10%, 屏蔽, 0.55 ohm, 980 mA

Inductor Power Shielded Wirewound 180uH 10% 100KHz 12Q-Factor Ferrite 980mA 550mOhm DCR T/R

得捷:
FIXED IND 180UH 980MA 550MOHM SM

e络盟:
功率电感SMD, 180 µH, 980 mA, 屏蔽, 950 mA, SRR1240系列, 12.5mm x 12.5mm x 4mm

艾睿:

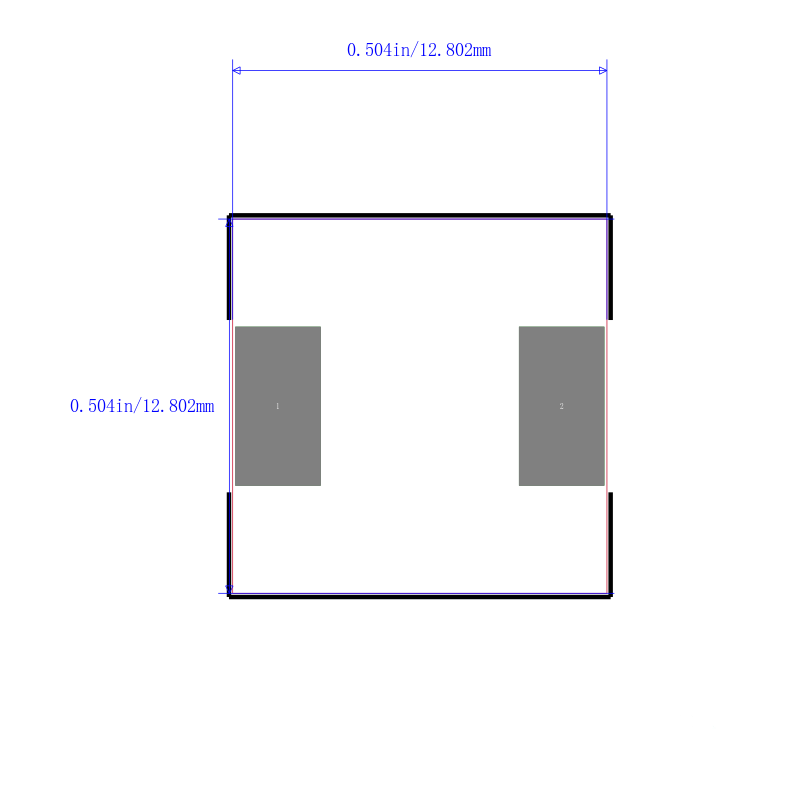

Is space on a PCB a limiting factor for your electronic circuit design? Then use this power SRR1240-181K surface mount inductor from Bourns to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 10%. It has an inductance of 180u H. This SMD inductor has a maximum DC current of 980m A with a maximum resistance of 550m Ohm. This device utilizes wirewound technology. This product is 12.8 mm long, 4.5 mm tall and 12.8 mm deep. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 7MTyp Hz.

安富利:
Ind Power Shielded Wirewound 180uH 10% 100KHz 12Q-Factor Ferrite 980mA T/R

Chip1Stop:
Ind Power Shielded Wirewound 180uH 10% 100KHz 12Q-Factor Ferrite 980mA T/R

Verical:
Inductor Power Shielded Wirewound 180uH 10% 100KHz 12Q-Factor Ferrite 0.98A 0.55Ohm DCR T/R

Newark:
# BOURNS  SRR1240-181K  Surface Mount Power Inductor, SRR1240 Series, 180 H, 10%, Shielded, 0.55 ohm, 980 mA

Online Components:
Inductor Power Shielded Wirewound 180uH 10% 100KHz 12Q-Factor Ferrite 980mA 550mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 180uH 10% 100KHz 12Q-Factor Ferrite 980mA 550mOhm DCR T/R
