74AHCT 系列,Texas Instruments高级高速 CMOS,TTL 逻辑 工作电压:4.5 - 5.5 兼容性:输入 TTL、输出 TTL ESD 保护超过 JESD 22 按 JESD 17 标准,闩锁效应性能超过 250 mA ### 74AHCT 系列
74AHCT 系列,Texas Instruments
高级高速 CMOS,TTL 逻辑
工作电压:4.5 - 5.5
兼容性:输入 TTL、输出 TTL
ESD 保护超过 JESD 22
按 JESD 17 标准,闩锁效应性能超过 250 mA
得捷:
IC BUF NON-INVERT 5.5V 48SSOP
立创商城:
SN74AHCT16244DL
德州仪器TI:
16-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs
欧时:
### 74AHCT 系列,Texas Instruments高级高速 CMOS,TTL 逻辑 工作电压:4.5 - 5.5 兼容性:输入 TTL、输出 TTL ESD 保护超过 JESD 22 按 JESD 17 标准,闩锁效应性能超过 250 mA ### 74AHCT 系列
艾睿:
This SN74AHCT16244DL buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 125 °C. This device comes in tube packaging. It has 16 channels per chip. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
安富利:
Buffer/Line Driver 16-CH Non-Inverting 3-ST CMOS 48-Pin SSOP Tube
Verical:
Buffer/Line Driver 16-CH Non-Inverting 3-ST CMOS 48-Pin SSOP Tube
电源电压DC 4.50V ~ 5.50V
输出接口数 16
通道数 16
位数 16
传送延迟时间 9.50 ns
电压波节 5.00 V
输出电流驱动 -1.00 mA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount
引脚数 48

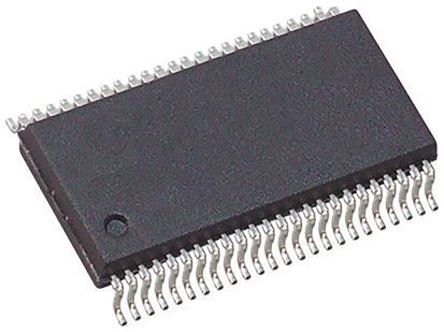

封装 SSOP-48
长度 15.88 mm
宽度 7.49 mm
高度 2.59 mm
封装 SSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AHCT16244DL TI 德州仪器 | 当前型号 | 当前型号 |
74AHCT16244DGGRE4 德州仪器 | 完全替代 | SN74AHCT16244DL和74AHCT16244DGGRE4的区别 |
74AHCT16244DLRG4 德州仪器 | 完全替代 | SN74AHCT16244DL和74AHCT16244DLRG4的区别 |
74AHCT16244DGVRG4 德州仪器 | 完全替代 | SN74AHCT16244DL和74AHCT16244DGVRG4的区别 |
