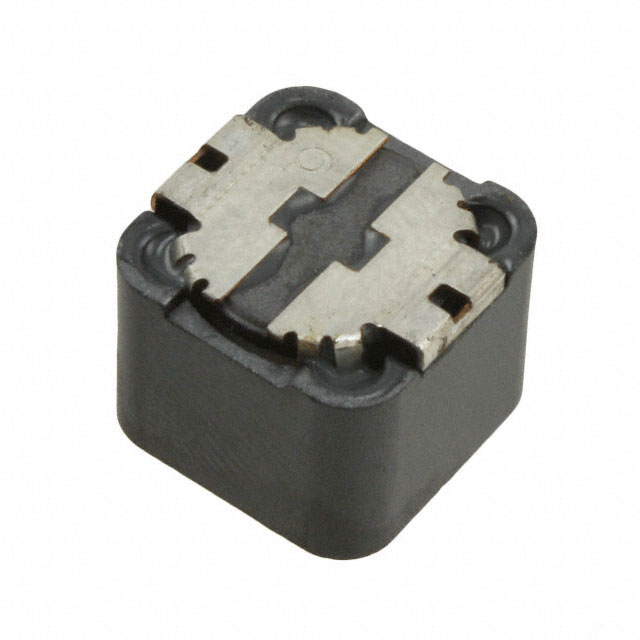

BOURNS SRR1210-150M 电感, 15uH, 5.8A, 20%, SMD
Inductor Power Shielded Wirewound 15uH 20% 100KHz 16Q-Factor Ferrite 5.8A 32mOhm DCR T/R
立创商城:
15uH ±20% 5.8A 32mΩ
得捷:
FIXED IND 15UH 5.8A 32 MOHM SMD
e络盟:
电感, 15uH, 5.8A, 20%, SMD
艾睿:
Inductor Power Shielded Wirewound 15uH 20% 100KHz 16Q-Factor Ferrite 5.8A 32mOhm DCR T/R
安富利:
Ind Power Shielded Wirewound 15uH 20% 100KHz 16Q-Factor Ferrite 5.8A T/R
Chip1Stop:
Inductor Power Shielded Wirewound 15uH 20% 100KHz 16Q-Factor Ferrite 5.8A 32mOhm DCR T/R
Verical:
Inductor Power Shielded Wirewound 15uH 20% 100KHz 16Q-Factor Ferrite 5.8A 32mOhm DCR T/R
Newark:
# BOURNS SRR1210-150M Surface Mount Power Inductor, SRR1210 Series, 15 µH, 5.8 A, 5.3 A, Shielded, 0.032 ohm
MASTER:
Inductor Power Shielded Wirewound 15uH 20% 1KHz 16Q-Factor Ferrite 5.8A 32mOhm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 15uH 20% 100KHz 16Q-Factor Ferrite 5.8A 32mOhm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 15uH 20% 1KHz 16Q-Factor Ferrite 5.8A 32mOhm DCR T/R
额定电流 5.8 A
容差 ±20 %
电感 15 µH
自谐频率 10.5 MHz
Q值 16.0
电感公差 ±20 %
测试频率 100 kHz
电阻DC） ≤32 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.032 Ω
安装方式 Surface Mount
封装 12mm x 12mm x 10mm
长度 12 mm
宽度 12 mm
高度 10 mm
封装 12mm x 12mm x 10mm
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
