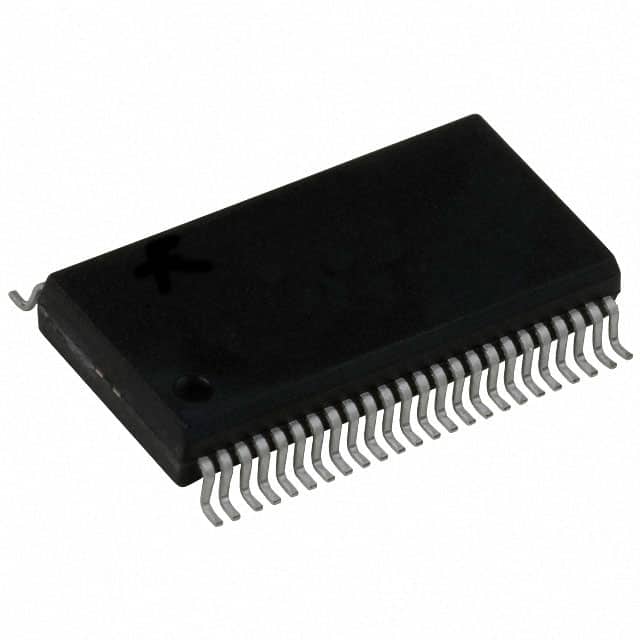

16位缓冲器/驱动器,具有三态输出 16-BIT BUFFERS/DRIVERS WITH 3-STATE OUTPUTS
Buffer, Non-Inverting 4 Element 4 Bit per Element 3-State Output 48-SSOP
得捷:
IC BUF NON-INVERT 5.5V 48SSOP
立创商城:
SN74ABT162244DL
德州仪器TI:
16-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs
贸泽:
Buffers & Line Drivers Tri-State 16-Bit
艾睿:
Amplify analog and digital signals by driving the input to the transmission line with this SN74ABT162244DL buffer and line driver from Texas Instruments. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. It has 16 channels per chip. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
安富利:
Buffer/Line Driver 16-CH Non-Inverting 3-ST BiCMOS 48-Pin SSOP Tube
Chip1Stop:
Buffer/Line Driver 16-CH Non-Inverting 3-ST BiCMOS 48-Pin SSOP Tube
Verical:
Buffer/Line Driver 16-CH Non-Inverting 3-ST BiCMOS 48-Pin SSOP Tube
Newark:
# TEXAS INSTRUMENTS SN74ABT162244DL Buffer, 74ABT162, 5.5 V to 4.5 V, SSOP-48
Win Source:
IC BUFF/DVR TRI-ST 16BIT 48SSOP
电源电压DC 4.50V ~ 5.50V
输出接口数 16
通道数 16
位数 16
传送延迟时间 4.80 ns
电压波节 5.00 V
静态电流 30 mA
输出电流驱动 -1.00 mA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 48
封装 SSOP-48
长度 15.88 mm
宽度 7.49 mm
高度 2.59 mm
封装 SSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ABT162244DL TI 德州仪器 | 当前型号 | 当前型号 |
SN74ABT162244DLG4 德州仪器 | 完全替代 | SN74ABT162244DL和SN74ABT162244DLG4的区别 |
74ABT162244DLRG4 德州仪器 | 完全替代 | SN74ABT162244DL和74ABT162244DLRG4的区别 |
SN74ABT162244DLR 德州仪器 | 类似代替 | SN74ABT162244DL和SN74ABT162244DLR的区别 |
