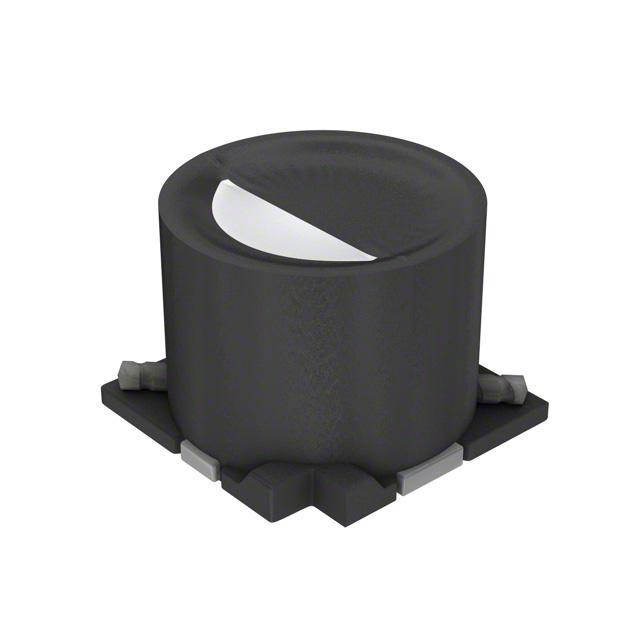

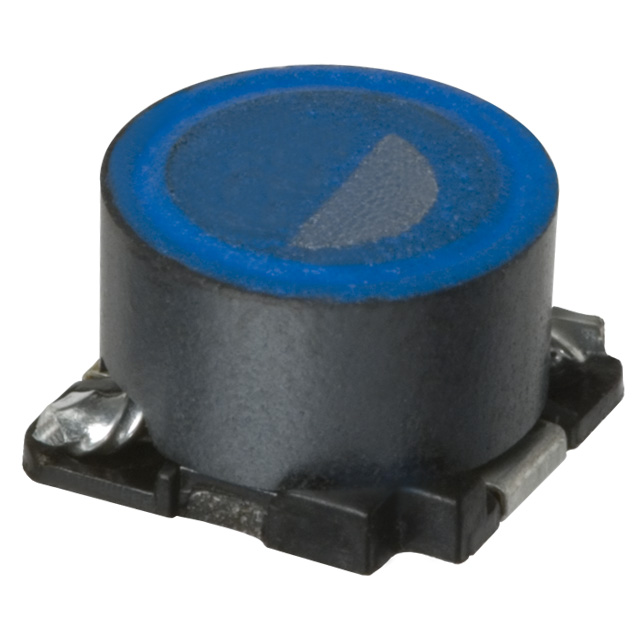

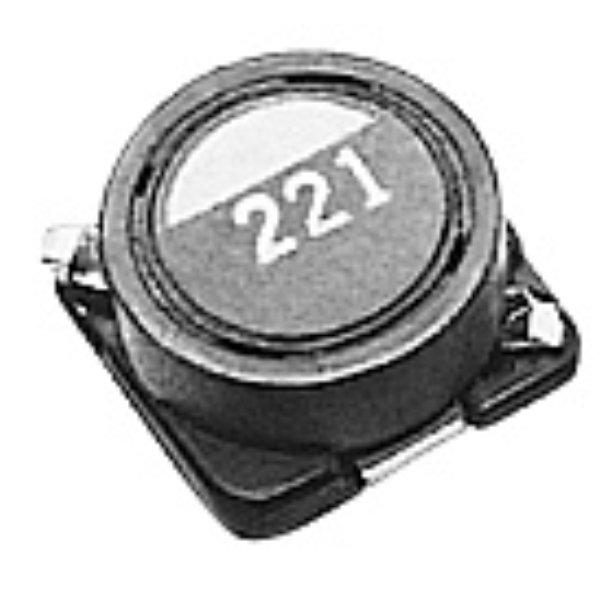

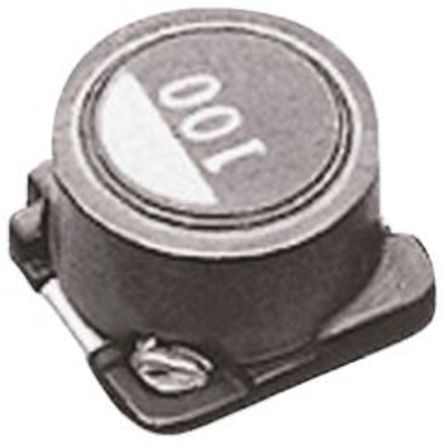

TDK SLF7045T-4R7M2R0-PF 电源线电感, 4.7uH, 2A, 20%, 整卷
固定器
得捷:
FIXED IND 4.7UH 2.1A 36 MOHM SMD
立创商城:
4.7uH ±20% 2A 36mΩ
欧时:
SLF7045 系列磁性屏蔽线绕扼流圈薄型表面安装磁性屏蔽电源线路电感器,用于减少 EMC 应用包括便携式电话机、个人计算机、硬盘驱动器及其他电子设备### TDK 非标准 SMT 电感器(扼流圈)
e络盟:
功率电感SMD, 4.7 µH, 2.1 A, 绕线, 2 A, SLF系列, 7mm x 7mm x 4.5mm
艾睿:
This power SLF7045T-4R7M2R0-PF surface mount inductor from TDK is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 105 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 7.2 mm long, 4.8 mm tall and 7.2 mm deep. It has an inductance of 4.7u H. Its test frequency is 100K Hz. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 2.1 A with a maximum resistance of 36m Ohm. It has a tolerance of 20%.
安富利:
Ind Power Shielded Wirewound 4.7uH 20% 100KHz 2.1A T/R
富昌:
SLF Series 7 x 7 mm 4.7 uH ±20 % Tol. 2 A Shielded SMT Power Inductor
Chip1Stop:
Inductor Power Shielded Wirewound 4.7uH 20% 100KHz Ferrite 2.1A 36mOhm DCR T/R
Verical:
Inductor Power Shielded Wirewound 4.7uH 20% 100KHz Ferrite 2.1A 0.036Ohm DCR T/R
Newark:
Surface Mount Power Inductor, SLF Series, 4.7 µH, 2.1 A, 2 A, Wirewound, 0.03 ohm
儒卓力:
**SLF7045T 4,7uH 2000mA 20% WWT **
Electro Sonic:
Inductor Power Shielded Wirewound 4.7uH 20% 100KHz Ferrite 2.1A 36mOhm DCR T/R
Win Source:
4.7μH Shielded Wirewound Inductor 2.1A 36 mOhm Max Nonstandard
额定电流 2.1 A
容差 ±20 %
电感 4.7 µH
产品系列 SLF
电阻 30.0 mΩ
阻值偏差 ±20 %
屏蔽 Yes
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤36 mΩ
工作温度Max 85 ℃
工作温度Min -20 ℃
电阻DC Max 0.03 Ω
安装方式 Surface Mount
引脚数 2
封装 7mm x 7mm x 4.5mm
长度 7 mm
宽度 7 mm
高度 4.5 mm
封装 7mm x 7mm x 4.5mm
重量 0.6 g
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SLF7045T-4R7M2R0-PF TDK 东电化 | 当前型号 | 当前型号 |
DR74-4R7-R 伊顿巴斯曼 | 功能相似 | SLF7045T-4R7M2R0-PF和DR74-4R7-R的区别 |
SLF7045T-4R7M2R0 东电化 | 功能相似 | SLF7045T-4R7M2R0-PF和SLF7045T-4R7M2R0的区别 |
