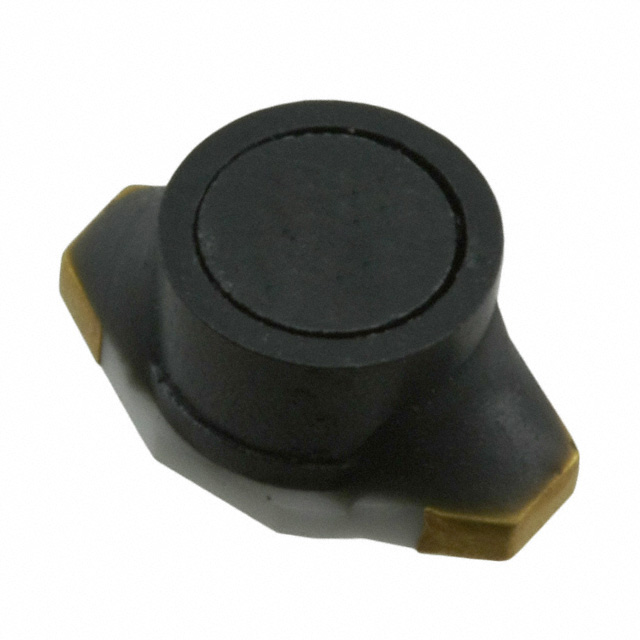

BOURNS SRR6603-472ML 表面贴装功率电感器, SRR6603系列, 4.7 mH, ± 20%, 屏蔽, 13.9 ohm, 60 mA
Inductor Power Shielded Wirewound 4.7mH 20% 100KHz 50Q-Factor Ferrite 60mA 13.9Ohm DCR T/R
立创商城:
4.7mH ±20% 60mA 13.9Ω
得捷:
FIXED IND 4.7MH 60MA 13.9OHM SMD
e络盟:
功率电感SMD, 4.7 mH, 60 mA, 屏蔽, 21 mA, SRR6603系列, 6.6mm x 4.4mm x 3mm
艾睿:
Save valuable space on a PCB with this power SRR6603-472ML surface mount inductor from Bourns. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 60m A with a maximum resistance of 13.9 Ohm. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 1MTyp Hz. It has a tolerance of 20%. It has an inductance of 4.7m H. This product is 6.6 mm long, 3 mm tall and 4.4 mm deep.
安富利:
Ind Power Shielded Wirewound 4.7mH 20% 100KHz 50Q-Factor Ferrite 60mA T/R
Chip1Stop:
Ind Power Shielded Wirewound 4.7mH 20% 100KHz 50Q-Factor Ferrite 60mA T/R
Verical:
Inductor Power Shielded Wirewound 4700uH 20% 100KHz 50Q-Factor Ferrite 0.06A 13.9Ohm DCR T/R
MASTER:
Inductor Power - Shielded - Wirewound - 4.8 x 4..8 x 1.8mm - 4.7mH - 100KHz - 60mA - 13.9 Ohm.
Online Components:
Inductor Power Shielded Wirewound 4.7mH 20% 100KHz 50Q-Factor Ferrite 60mA 13.9Ohm DCR T/R
Electro Sonic:
Inductor Power - Shielded - Wirewound - 4.8 x 4..8 x 1.8mm - 4.7mH - 100KHz - 60mA - 13.9 ...
额定电流 60 mA
容差 ±20 %
电感 4.7 mH
自谐频率 1 MHz
Q值 50.0
电感公差 ±20 %
测试频率 100 kHz
电阻DC) 13.9 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 13.9 Ω
安装方式 Surface Mount
引脚数 2
封装 6.6mm x 4.4mm x 3mm
长度 6.6 mm
宽度 4.4 mm
高度 3 mm
封装 6.6mm x 4.4mm x 3mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SRR6603-472ML Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
PM1608S-472M 伯恩斯 | 功能相似 | SRR6603-472ML和PM1608S-472M的区别 |
HM71S-0603472LFTR TT Electronics/BI | 功能相似 | SRR6603-472ML和HM71S-0603472LFTR的区别 |
