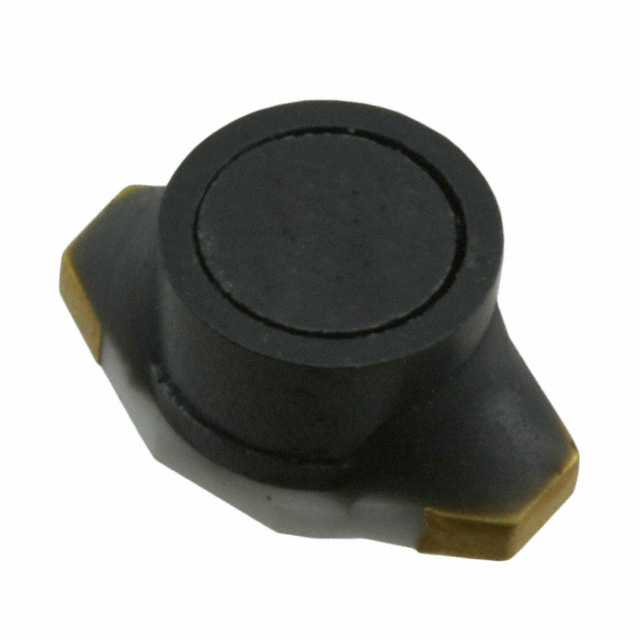

SRR6603-222ML

BOURNS  SRR6603-222ML  表面贴装功率电感器, SRR6603系列, 2.2 mH, ± 20%, 屏蔽, 8.5 ohm, 100 mA

The SRR6603 series shielded Power Inductor with ferrite DR and RI core. It has silver/nickel/gold termination and ceramic base. It has enamelled copper wire winding and suitable for input/output of DC/DC converters.

.

Available in E12 series

.

-55to 125°C Operating temperature range

立创商城:
2.2mH ±20% 100mA 8.5Ω

得捷:
FIXED IND 2.2MH 100MA 8.5OHM SMD

e络盟:
功率电感SMD, 2.2 mH, 100 mA, 屏蔽, 28 mA, SRR6603系列, 6.6mm x 4.4mm x 3mm

艾睿:
This power SRR6603-222ML surface mount inductor from Bourns is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a tolerance of 20%. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 2MTyp Hz. This device utilizes wirewound technology. It has an inductance of 2.2m H. This product is 6.6 mm long, 3 mm tall and 4.4 mm deep. This SMD inductor has a maximum DC current of 100m A with a maximum resistance of 8.5 Ohm.

安富利:
Ind Power Shielded Wirewound 2.2mH 20% 100KHz 50Q-Factor Ferrite 100mA T/R

Verical:
Inductor Power Shielded Wirewound 2200uH 20% 100KHz 50Q-Factor Ferrite 0.1A 8.5Ohm DCR T/R

Newark:
# BOURNS  SRR6603-222ML  Surface Mount Power Inductor, SRR6603 Series, 2.2 mH, 20%, Shielded, 8.5 ohm, 100 mA

Online Components:
Inductor Power Shielded Wirewound 2.2mH 20% 100KHz 50Q-Factor Ferrite 100mA 8.5Ohm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 2.2mH 20% 100KHz 50Q-Factor Ferrite 100mA 8.5Ohm DCR T/R
