SN74AUC2G07YZPR

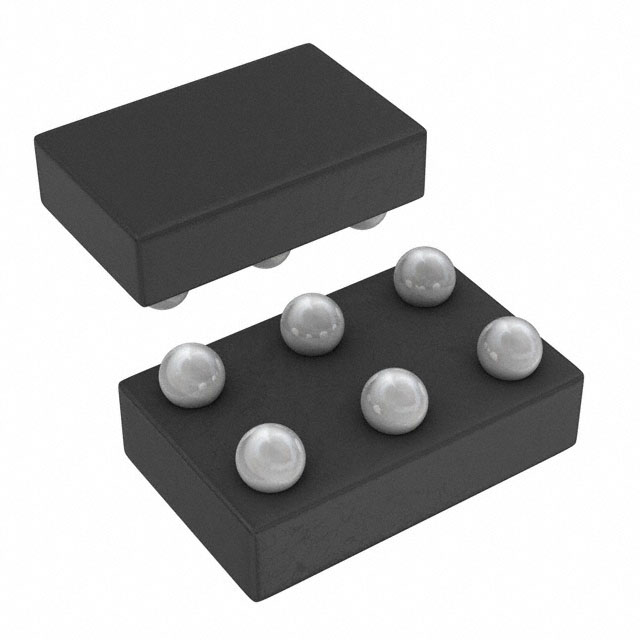

SN74AUC2G07YZPR图片1

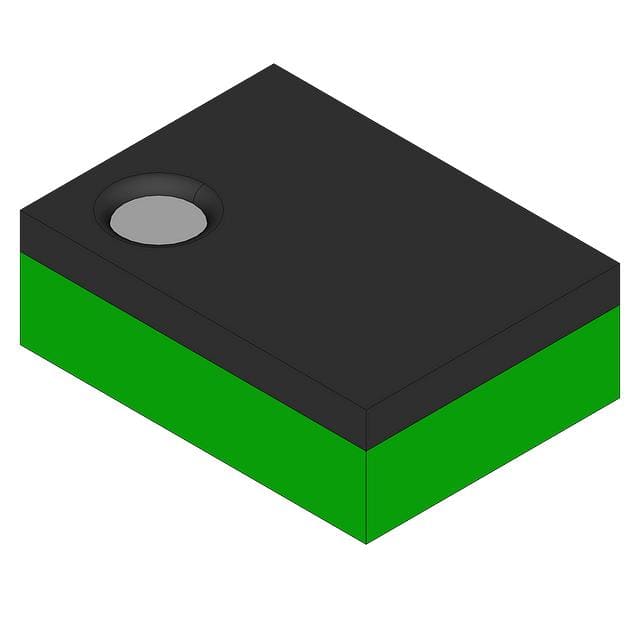

SN74AUC2G07YZPR图片2
SN74AUC2G07YZPR图片3
SN74AUC2G07YZPR图片4
SN74AUC2G07YZPR图片5
SN74AUC2G07YZPR图片6
SN74AUC2G07YZPR图片7
SN74AUC2G07YZPR概述

双缓冲/驱动器,具有漏极开路输出 DUAL BUFFER/DRIVER WITH OPEN-DRAIN OUTPUTS

Buffer, Non-Inverting 2 Element 1 Bit per Element Open Drain Output 6-DSBGA, 6-WCSP 1.4x0.9


得捷:
IC BUFFER NON-INVERT 2.7V 6DSBGA


立创商城:
SN74AUC2G07YZPR


德州仪器TI:
2-ch, 0.8-V to 2.7-V high speed buffers with open-drain outputs


艾睿:
Leading the input to the transmission line this SN74AUC2G07YZPR buffer and line driver by Texas Instruments will amplify digital and analog signals. With an open drain output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has 2 channels per chip. This non-inverting device has a typical operating supply voltage of 1.8|2.5 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 2.7 V.


安富利:
Buffer/Driver 2-CH Non-Inverting Open Drain CMOS 6-Pin DSBGA T/R


Chip1Stop:
Buffer/Driver 2-CH Non-Inverting Open Drain CMOS 6-Pin DSBGA T/R


Verical:
Buffer/Driver 2-CH Non-Inverting Open Drain CMOS 6-Pin DSBGA T/R


AMEYA360:
IC BUFF/DVR DL NON-INV 6DSBGA


SN74AUC2G07YZPR中文资料参数规格
技术参数

电源电压DC 2.70 V

输出接口数 2

通道数 2

位数 2

传送延迟时间 1.60 ns

逻辑门个数 2

输入数 2

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 0.8V ~ 2.7V

电源电压Max 2.7 V

封装参数

安装方式 Surface Mount

引脚数 6

封装 DSBGA-6

外形尺寸

宽度 0.9 mm

封装 DSBGA-6

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

SN74AUC2G07YZPR引脚图与封装图
SN74AUC2G07YZPR引脚图
SN74AUC2G07YZPR封装图
SN74AUC2G07YZPR封装焊盘图
在线购买SN74AUC2G07YZPR
型号: SN74AUC2G07YZPR
制造商: TI 德州仪器
描述:双缓冲/驱动器,具有漏极开路输出 DUAL BUFFER/DRIVER WITH OPEN-DRAIN OUTPUTS
替代型号SN74AUC2G07YZPR
型号/品牌 代替类型 替代型号对比

SN74AUC2G07YZPR

TI 德州仪器

当前型号

当前型号

SN74AUC2G07YEPR

德州仪器

完全替代

SN74AUC2G07YZPR和SN74AUC2G07YEPR的区别
