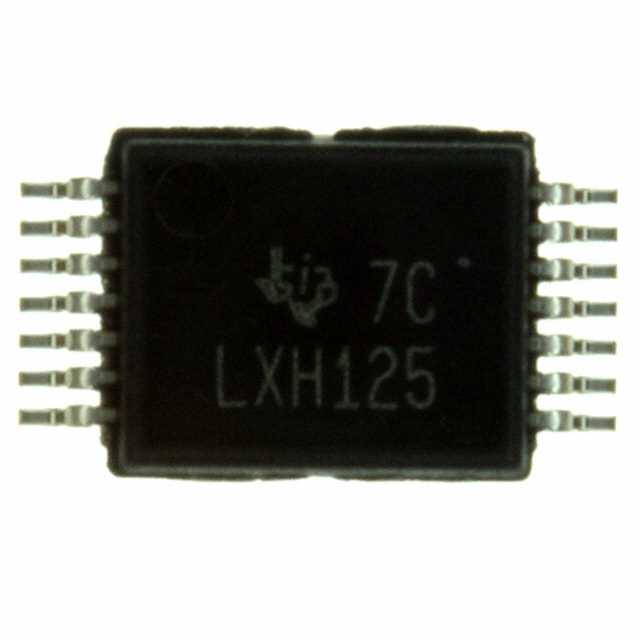

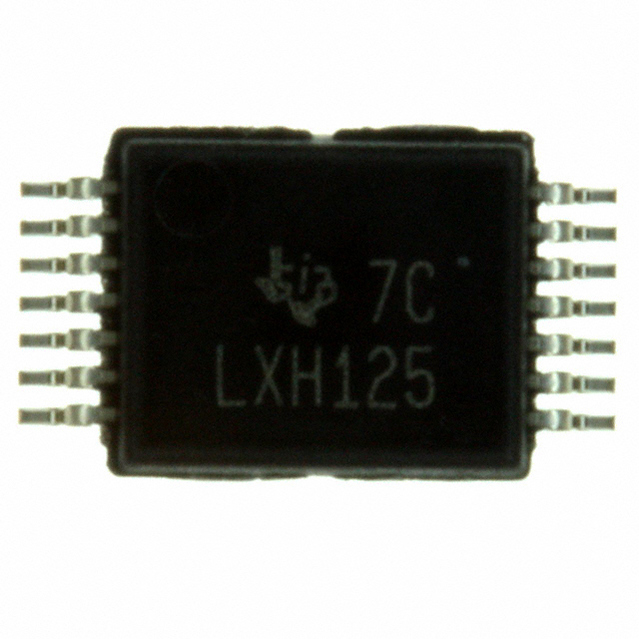

SN74LVTH125DGVR

3.3 -V ABT翻两番总线缓冲器，三态输出 3.3-V ABT QUADRUPLE BUS BUFFERS WITH 3-STATE OUTPUTS

* Support Mixed-Mode Signal Operation 5-V Input and Output Voltages With 3.3-V VCC * Support Unregulated Battery Operation Down to 2.7 V * Typical VOLP Output Ground Bounce    CC = 3.3 V, TA = 25°C * Ioff and Power-Up 3-State Support Hot Insertion * Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors * Latch-Up Performance Exceeds 500 mA Per JESD 17 * ESD Protection Exceeds JESD 22 * 2000-V Human-Body Model A114-A * 200-V Machine Model A115-A

得捷:
IC BUF NON-INVERT 3.6V 14TVSOP

立创商城:
SN74LVTH125DGVR

德州仪器TI:
4-ch, 2.7-V to 3.6-V buffers with bus-hold, TTL-compatible CMOS inputs and 3-state outputs

艾睿:
Amplify analog and digital signals by driving the input to the transmission line with this SN74LVTH125DGVR buffer and line driver from Texas Instruments. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has 4 channels per chip. This non-inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V.

安富利:

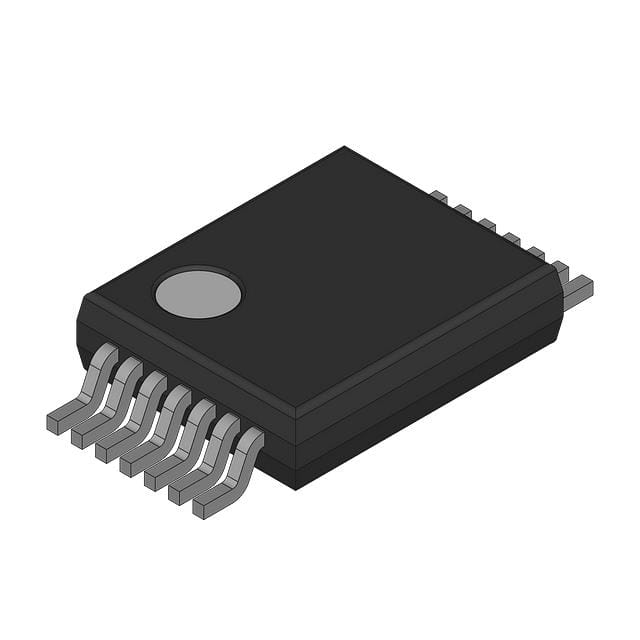

Buffer/Line Driver 4-CH Non-Inverting 3-ST BiCMOS 14-Pin TVSOP T/R

Chip1Stop:
Buffer/Line Driver 4-CH Non-Inverting 3-ST BiCMOS 14-Pin TVSOP T/R

Verical:
Buffer/Line Driver 4-CH Non-Inverting 3-ST BiCMOS 14-Pin TVSOP T/R

Newark:
# TEXAS INSTRUMENTS  SN74LVTH125DGVR  Buffer, Non-Inverting, TTL, 2.7V to 3.6V, TVSOP-14
