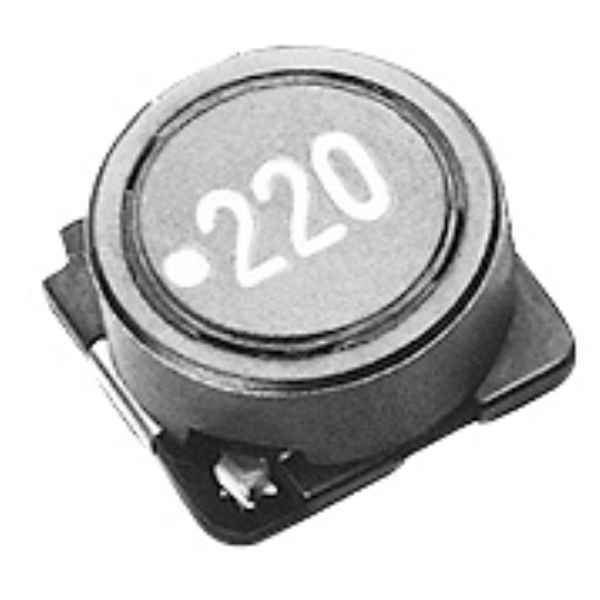

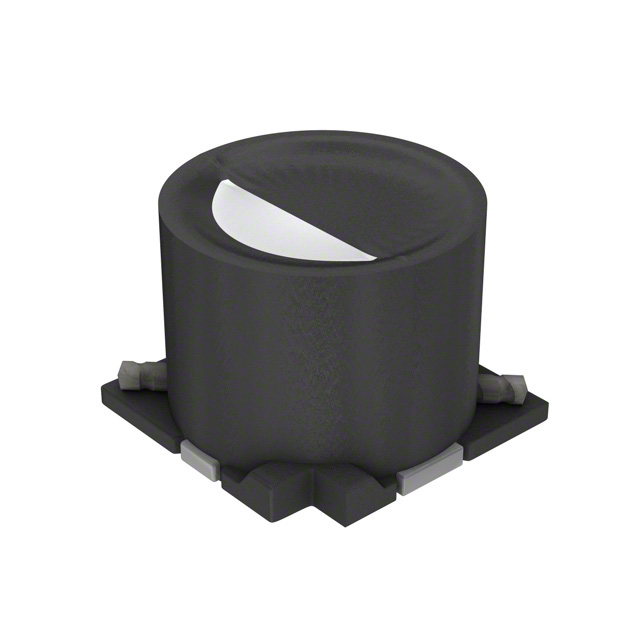

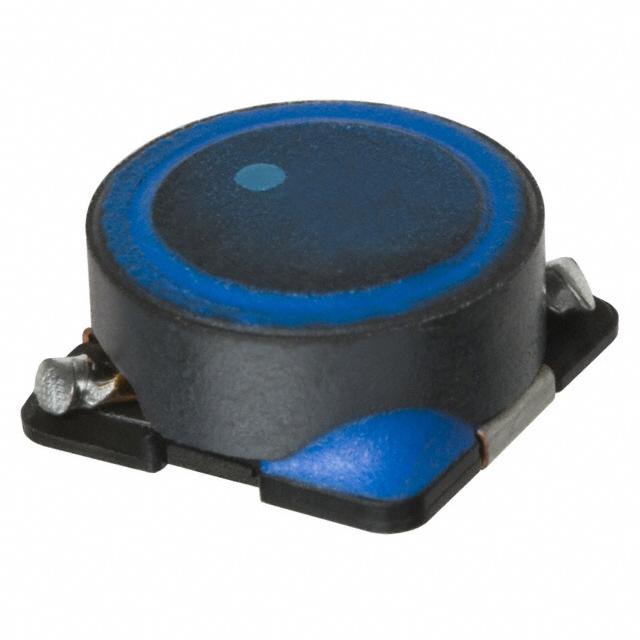

SLF 系列 10.1 x 10.1 mm 680 uH 20% 容差 380 A 屏蔽 表面贴装 功率电感
固定器
得捷:
FIXED IND 680UH 380MA 1.92OHM SM
欧时:
Wire wound Ferrite Core 10.1x10.1mm 680u
立创商城:
680uH ±20% 380mA 1.92Ω
艾睿:
This power SLF10145T-681MR38-PF surface mount inductor from TDK is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 105 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 680u H. This SMD inductor has a maximum DC current of 380m A with a maximum resistance of 1.92 Ohm. This device utilizes wirewound technology. Its test frequency is 1K Hz. This product is 10.4 mm long, 4.8 mm tall and 10.4 mm deep. It has a tolerance of 20%.
安富利:
Ind Power Shielded Wirewound 680uH 20% 1KHz 380mA T/R
Chip1Stop:
Ind Power Shielded Wirewound 680uH 20% 1KHz 380mA T/R
Verical:
Inductor Power Shielded Wirewound 680uH 20% 1KHz Ferrite 0.38A 1.92Ohm DCR T/R
Win Source:
680μH Shielded Wirewound Inductor 380mA 1.92 Ohm Max Nonstandard
额定电流 380 mA
容差 ±20 %
电感 680 µH
产品系列 SLF
阻值偏差 ±20 %
屏蔽 Yes
电感公差 ±20 %
测试频率 1 kHz
电阻DC) ≤1.92 Ω
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 1.92 Ω
安装方式 Surface Mount
封装 1010
长度 10.1 mm
宽度 10.1 mm
高度 4.5 mm
封装 1010
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SLF10145T-681MR38-PF TDK 东电化 | 当前型号 | 当前型号 |
SLF10145T-681MR38 东电化 | 功能相似 | SLF10145T-681MR38-PF和SLF10145T-681MR38的区别 |
