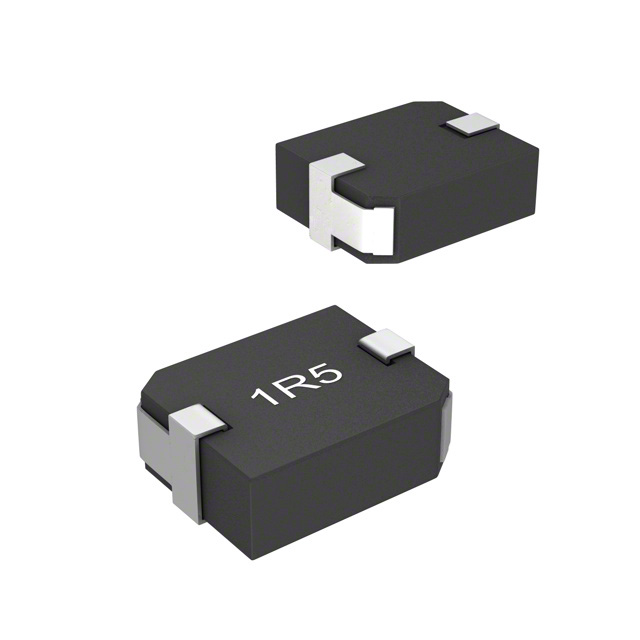

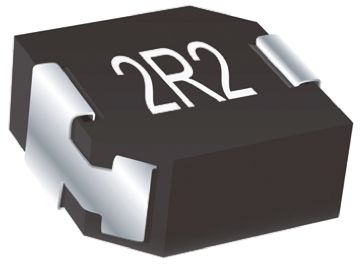

SRP7030-R47M

BOURNS  SRP7030-R47M  表面贴装功率电感器, SRP7030系列, 470 nH, ± 20%, 屏蔽, 4500 µohm, 17 A

SRP7030 系列磁性屏蔽线绕扼流圈

屏蔽结构

装置高度 3.2mm

范围：0.1μH 至 10μH

电流高达 32.5A

符合 RoHs

应用于直流/直流转换器的输入/输出以及电源

立创商城:
470nH ±20% 17.5A 4.2mΩ

得捷:
FIXED IND 470NH 17.5A 4.2MOHM SM

欧时:
### SRP7030 系列磁性屏蔽线绕扼流圈屏蔽结构 装置高度 3.2mm 电感范围：0.1μH 至 10μH 电流高达 32.5A 符合 RoHs 应用于直流/直流转换器的输入/输出以及电源 ### Bourns 非标准表面安装电感器（扼流圈）

e络盟:
功率电感SMD, 470 nH, 17 A, 屏蔽, 19 A, SRP7030系列, 7.6mm x 6.5mm x 3.2mm

艾睿:
Make any circuit look clean and compact using this power SRP7030-R47M surface mount inductor from Bourns. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 150 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 7.8 mm long, 3.2 mm tall and 7 mm deep. Its test frequency is 100K Hz. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 17.5 A with a maximum resistance of 4.2m Ohm. It has an inductance of 470n H. This device is made with wirewound technology.

Allied Electronics:
Shielded WireWound SMD Inductor w/ IronCore, 470 nH +/-20% 26A Idc

安富利:
Ind Power Shielded Wirewound 470nH 20% 100KHz Iron 17.5A T/R

Chip1Stop:
Ind Power Shielded Wirewound 470nH 20% 100KHz Iron 17.5A T/R

Verical:
Inductor Power Shielded Wirewound 0.47uH 20% 100KHz Iron 17.5A 0.0042Ohm DCR T/R

Newark:
# BOURNS  SRP7030-R47M  Surface Mount Power Inductor, SRP7030 Series, 470 nH, 17 A, 19 A, Shielded, 4500 µohm

MASTER:
Inductor Power Shielded Wirewound 470nH 20% 100KHz Iron 17.5A 4.2mOhm DCR T/R

Online Components:
Inductor Power Shielded Wirewound 470nH 20% 100KHz Iron 17.5A 4.2mOhm DCR T/R

Electro Sonic:
Inductor Power Shielded Wirewound 470nH 20% 100KHz Iron 17.5A 4.2mOhm DCR T/R
