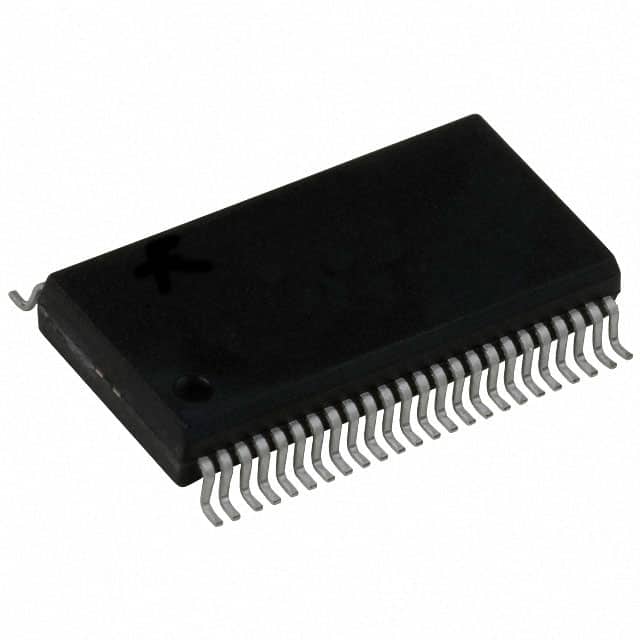

具有三态输出的 16 位缓冲器/驱动器 48-TSSOP -40 to 85
缓冲器,非反向 元件 8 位每元件 三态 Output 48-TSSOP
得捷:
IC BUF NON-INVERT 5.5V 48TSSOP
立创商城:
SN74AHC16541DGGR
德州仪器TI:
16-ch, 2-V to 5.5-V buffers with 3-state outputs
艾睿:
This SN74AHC16541DGGR buffer and line driver from Texas Instruments is used to amplify an analog or digital signal by driving the input to the transmission line. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has 16 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
安富利:
Buffer/Line Driver 16-CH Non-Inverting 3-ST CMOS 48-Pin TSSOP T/R
Chip1Stop:
Buffer/Line Driver 16-CH Non-Inverting 3-ST CMOS 48-Pin TSSOP T/R
Verical:
Buffer/Line Driver 16-CH Non-Inverting 3-ST CMOS 48-Pin TSSOP T/R
电源电压DC 2.00V ~ 5.50V
输出接口数 16
通道数 16
位数 16
传送延迟时间 8.00 ns
电压波节 5.00 V, 3.30 V
输出电流驱动 -1.00 mA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 48
封装 TSSOP-48
宽度 6.1 mm
封装 TSSOP-48
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AHC16541DGGR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHC16541DL 德州仪器 | 完全替代 | SN74AHC16541DGGR和SN74AHC16541DL的区别 |
SN74AHC16540DL 德州仪器 | 完全替代 | SN74AHC16541DGGR和SN74AHC16540DL的区别 |
SN74AHC16541DLR 德州仪器 | 完全替代 | SN74AHC16541DGGR和SN74AHC16541DLR的区别 |
