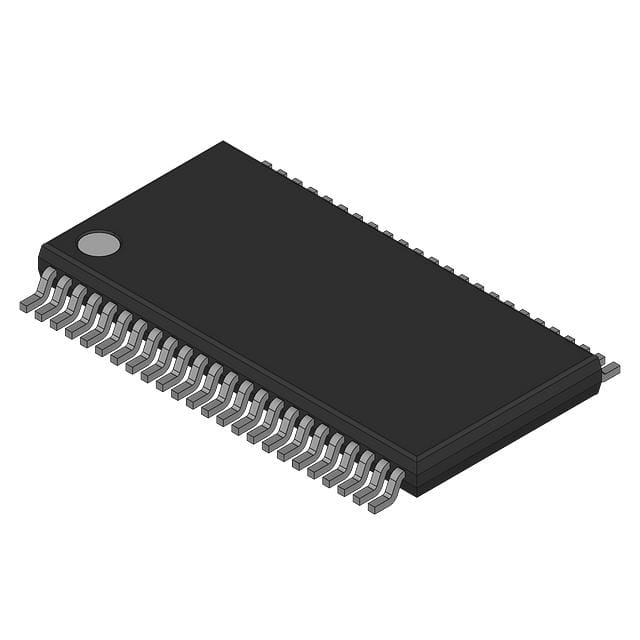

具有三态输出的 16 位缓冲器/驱动器 48-TSSOP -40 to 85
缓冲器,反向 4 元件 4 位每元件 三态 Output 48-TSSOP
得捷:
IC BUFFER INVERT 3.6V 48TSSOP
立创商城:
SN74ALVCH16240DGGR
德州仪器TI:
16-ch, 1.65-V to 3.6-V inverters with bus-hold and 3-state outputs
贸泽:
Buffers & Line Drivers Tri-State 16-Bit
艾睿:
Amplify analog and digital signals by driving the input to the transmission line with this SN74ALVCH16240DGGR buffer and line driver from Texas Instruments. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V. It has 16 channels per chip.
安富利:
Buffer/Line Driver 16-CH Inverting 3-ST CMOS 48-Pin TSSOP T/R
Chip1Stop:
Buffer/Line Driver 16-CH Inverting 3-ST CMOS 48-Pin TSSOP T/R
Win Source:
IC INVERTER QUAD 4-INPUT 48TSSOP
电源电压DC 1.65V ~ 3.60V
输出接口数 16
电路数 4
通道数 16
位数 16
传送延迟时间 4.20 ns
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输出电流驱动 -1.00 mA
输入数 4
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压 1.65V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 48
封装 TSSOP-48
长度 12.5 mm
宽度 6.1 mm
高度 1.15 mm
封装 TSSOP-48
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ALVCH16240DGGR TI 德州仪器 | 当前型号 | 当前型号 |
74ALVCH16240DLRG4 德州仪器 | 完全替代 | SN74ALVCH16240DGGR和74ALVCH16240DLRG4的区别 |
74ALVCH16240DGGRG4 德州仪器 | 完全替代 | SN74ALVCH16240DGGR和74ALVCH16240DGGRG4的区别 |
74ALVCH16240DLG4 德州仪器 | 完全替代 | SN74ALVCH16240DGGR和74ALVCH16240DLG4的区别 |
