双施密特触发缓冲器 DUAL SCHMITT-TRIGGER BUFFER
By driving the input to the transmission line this buffer and line driver by Texas Instruments will amplify any signal. This line driver has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has 2 channels per chip. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
输出接口数 2
通道数 2
位数 2
传送延迟时间 4.30 ns
逻辑门个数 2
输入数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 6

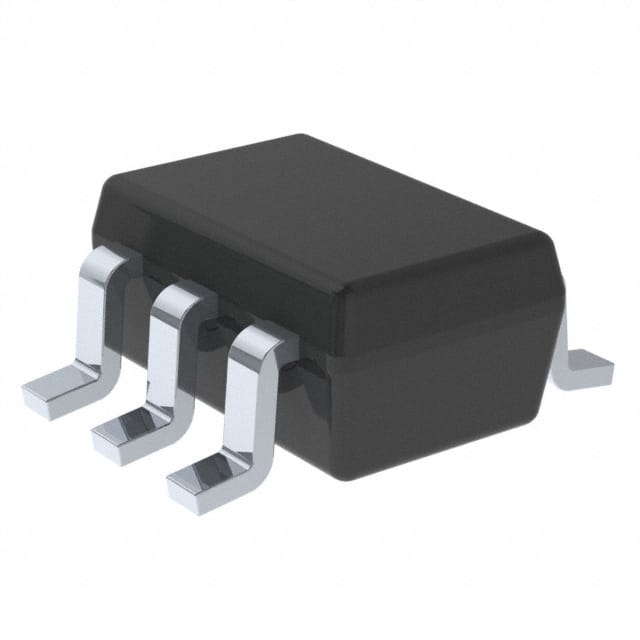

封装 SC-70-6
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装 SC-70-6
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC2G17DCKRG4 TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC2G17QDCKRQ1 德州仪器 | 完全替代 | SN74LVC2G17DCKRG4和SN74LVC2G17QDCKRQ1的区别 |
SN74LVC2G17DCKRE4 德州仪器 | 完全替代 | SN74LVC2G17DCKRG4和SN74LVC2G17DCKRE4的区别 |
SN74LVC2G17DCKTG4 德州仪器 | 完全替代 | SN74LVC2G17DCKRG4和SN74LVC2G17DCKTG4的区别 |
