3.3 -V ABT 16位缓冲器/驱动器,具有三态输出 3.3-V ABT 16-BIT BUFFERS/DRIVERS WITH 3-STATE OUTPUTS
By driving the input to the transmission line this buffer and line driver by Texas Instruments will amplify any signal. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -40 °C to 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has 16 channels per chip. This non-inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V.
电源电压DC 2.70V ~ 3.60V
输出接口数 16
通道数 16
位数 16
传送延迟时间 4.00 ns
电压波节 3.30 V, 2.70 V
输出电流驱动 -1.00 mA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
安装方式 Surface Mount
引脚数 48

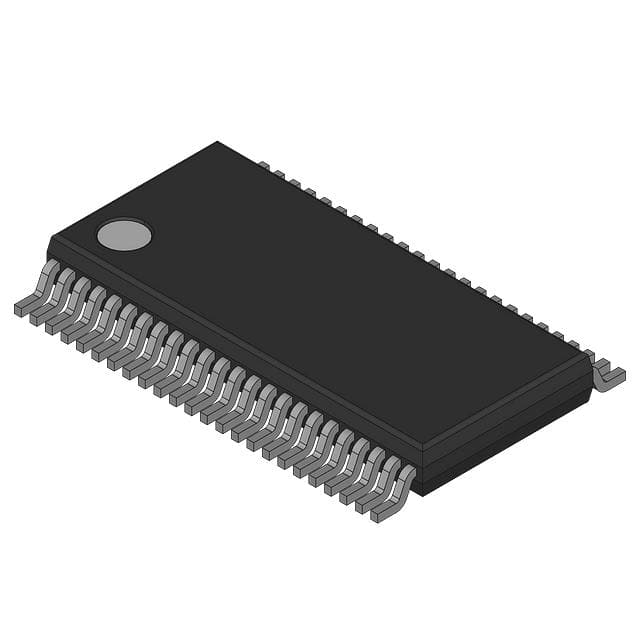

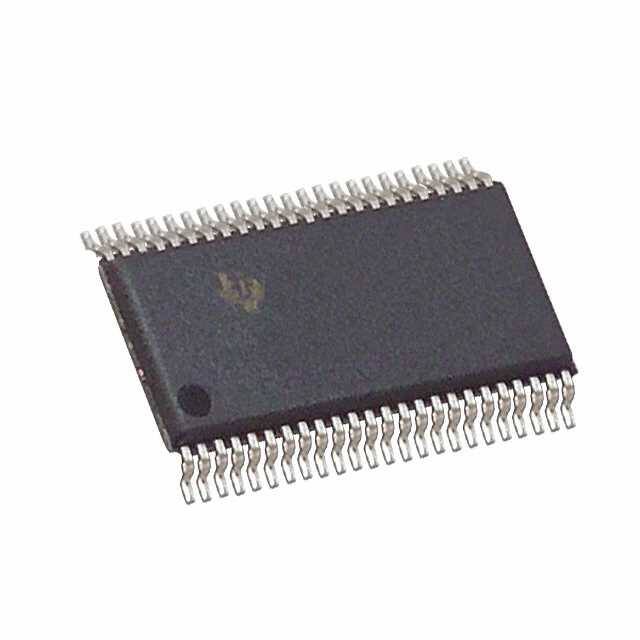

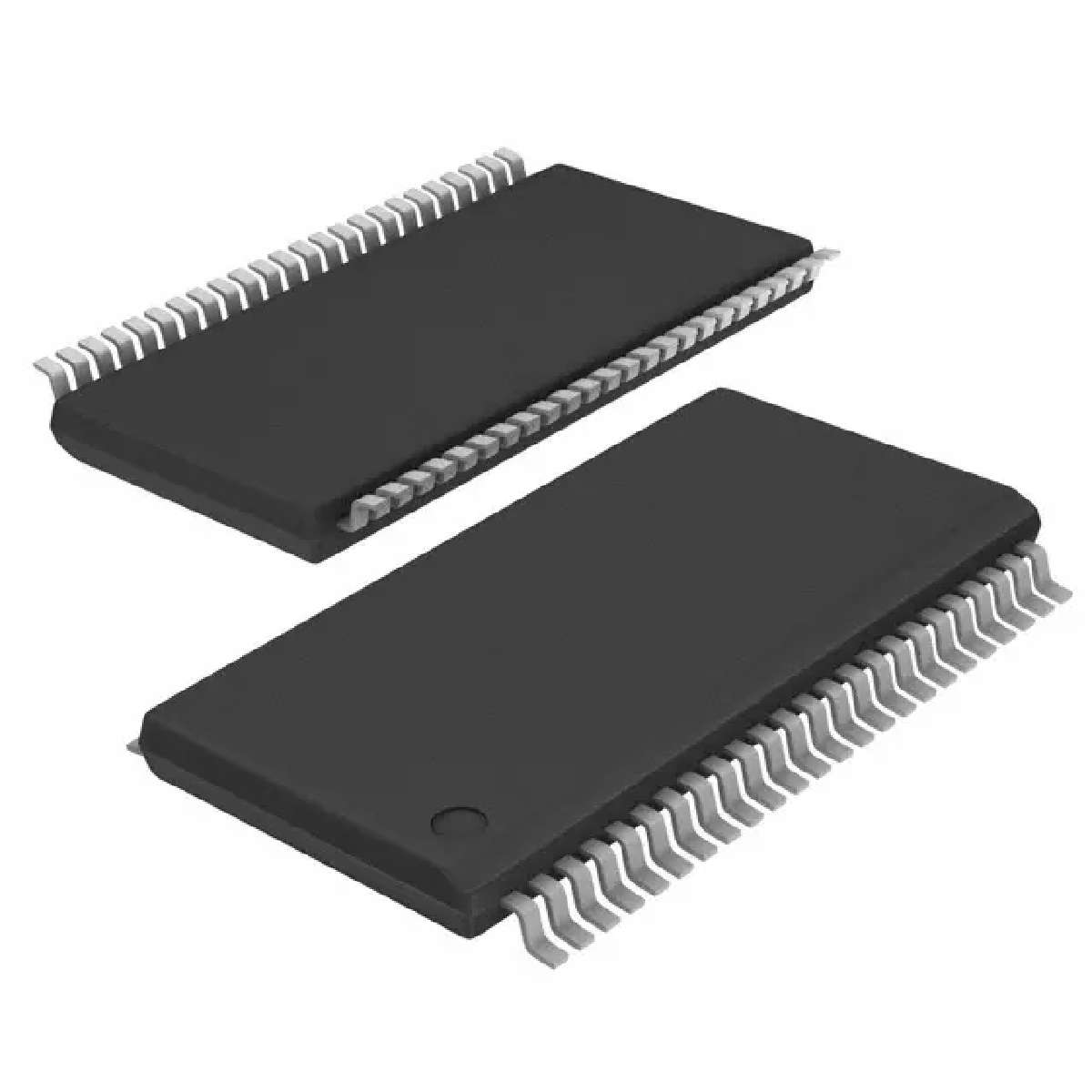

封装 TVSOP-48
封装 TVSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVT162244ADGVR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVT162244ADGGR 德州仪器 | 完全替代 | SN74LVT162244ADGVR和SN74LVT162244ADGGR的区别 |
SN74LVTH162244DGG 德州仪器 | 完全替代 | SN74LVT162244ADGVR和SN74LVTH162244DGG的区别 |
SN74LVTH162244DGGR 德州仪器 | 类似代替 | SN74LVT162244ADGVR和SN74LVTH162244DGGR的区别 |
