SN74ABT16540ADLR概述

具有三态输出的 16 位缓冲器/驱动器 48-SSOP -40 to 85

缓冲器,反向 2 元件 8 位每元件 三态 Output 48-SSOP


得捷:
IC BUFFER INVERT 5.5V 48SSOP


立创商城:
SN74ABT16540ADLR


德州仪器TI:
16-ch, 4.5-V to 5.5-V inverters with TTL-compatible CMOS inputs and 3-state outputs


贸泽:
Buffers & Line Drivers Tri-State 16-Bit


艾睿:
Amplify analog and digital signals by driving the input to the transmission line with this SN74ABT16540ADLR buffer and line driver from Texas Instruments. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 16 channels per chip.


安富利:
Buffer/Line Driver 16-CH Inverting 3-ST BiCMOS 48-Pin SSOP T/R


Chip1Stop:
Buffer/Line Driver 16-CH Inverting 3-ST BiCMOS 48-Pin SSOP T/R


Verical:
Buffer/Line Driver 16-CH Inverting 3-ST BiCMOS 48-Pin SSOP T/R


Win Source:
IC INVERTER DUAL 8-INPUT 48SSOP


SN74ABT16540ADLR中文资料参数规格
技术参数

电源电压DC 4.50V ~ 5.50V

输出接口数 16

电路数 2

通道数 16

位数 6

传送延迟时间 4.30 ns

电压波节 5.00 V

静态电流 34 mA

输出电流驱动 -500 µA

输入数 16

工作温度Max 85 ℃

工作温度Min 40 ℃

电源电压 4.5V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 4.5 V

封装参数

安装方式 Surface Mount

引脚数 48

封装 SSOP-48

外形尺寸

长度 15.88 mm

宽度 7.49 mm

高度 2.59 mm

封装 SSOP-48

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

SN74ABT16540ADLR引脚图与封装图
SN74ABT16540ADLR引脚图

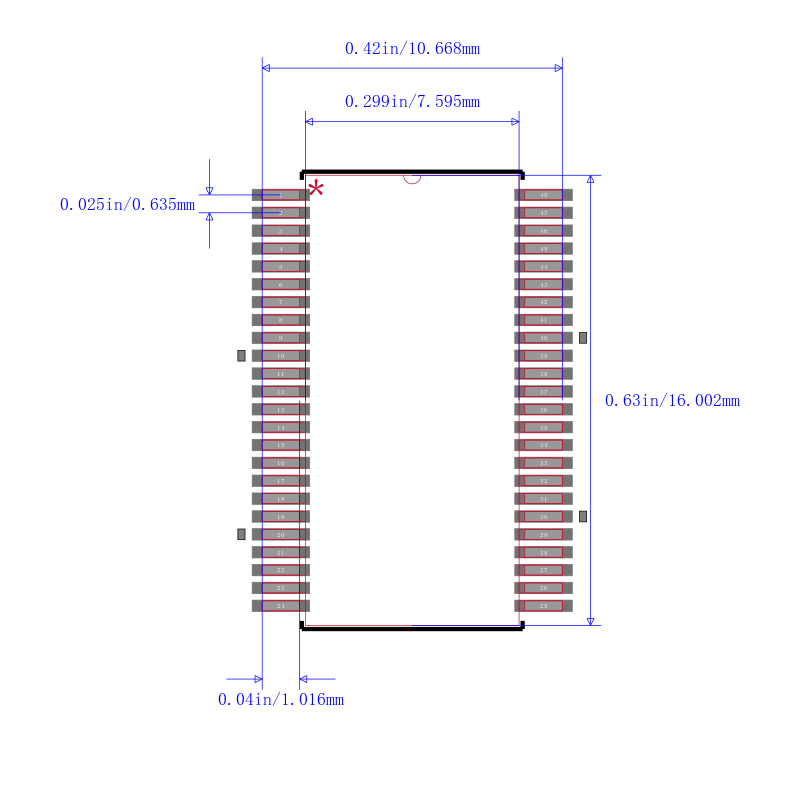

SN74ABT16540ADLR封装图
SN74ABT16540ADLR封装焊盘图
在线购买SN74ABT16540ADLR
型号: SN74ABT16540ADLR
制造商: TI 德州仪器
描述:具有三态输出的 16 位缓冲器/驱动器 48-SSOP -40 to 85
替代型号SN74ABT16540ADLR
型号/品牌 代替类型 替代型号对比

SN74ABT16540ADLR

TI 德州仪器

当前型号

当前型号

SN74ABT16540ADL

德州仪器

类似代替

SN74ABT16540ADLR和SN74ABT16540ADL的区别

SN74ABT16540ADLG4

德州仪器

类似代替

SN74ABT16540ADLR和SN74ABT16540ADLG4的区别

SN74ABT16540ADLRG4

德州仪器

类似代替

SN74ABT16540ADLR和SN74ABT16540ADLRG4的区别
