4位同步二进制CONTERS 4-BIT SYNCHRONOUS BINARY CONTERS
Working on a new design? This binary counter shift register from Texas Instruments is a great device to use in any design. This counter shift register has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
电源电压DC 2.00V ~ 5.50V
输出接口数 4
时钟频率 220 MHz
位数 4
电压波节 5.00 V, 3.30 V, 2.50 V
输出电流驱动 -1.00 mA
输入数 4
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
安装方式 Surface Mount
引脚数 16

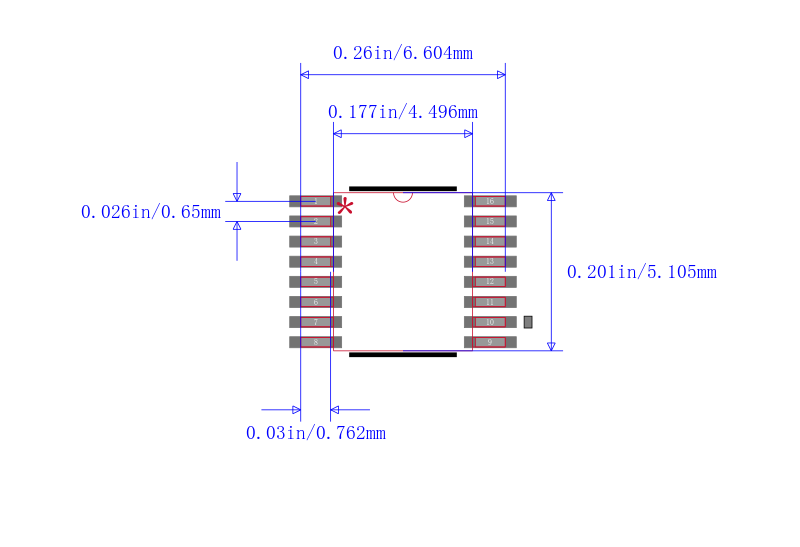

封装 TSSOP-16
高度 1.05 mm
封装 TSSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LV161APWRG4 TI 德州仪器 | 当前型号 | 当前型号 |
SN74LV161APW 德州仪器 | 完全替代 | SN74LV161APWRG4和SN74LV161APW的区别 |
SN74LV161APWR 德州仪器 | 完全替代 | SN74LV161APWRG4和SN74LV161APWR的区别 |
SN74LV161ADGVR 德州仪器 | 完全替代 | SN74LV161APWRG4和SN74LV161ADGVR的区别 |
