SN74LVC74AQPWRQ1 编带
Store state information for later use by using the Texas Instruments flip flop device. It has a differential output signal. This flip flop has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has 2 channels per chip. This inverting/non-inverting device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2 V, while its maximum is 3.6 V.
电源电压DC 2.00V ~ 3.60V
输出接口数 1
时钟频率 100 MHz
位数 2
传送延迟时间 5.20 ns
极性 Non-Inverting, Inverting
电压波节 3.30 V, 2.70 V
输入电容 5 pF
输出电流驱动 -1.00 mA
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
安装方式 Surface Mount

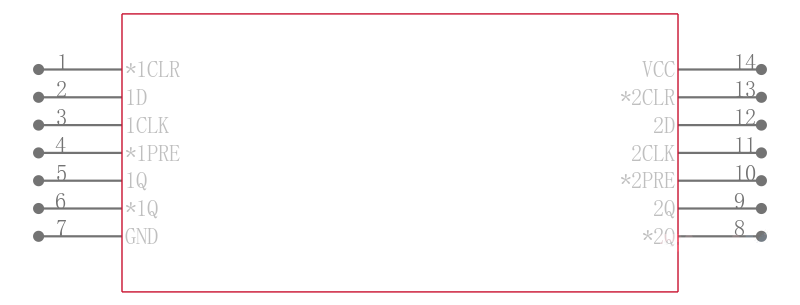

引脚数 14

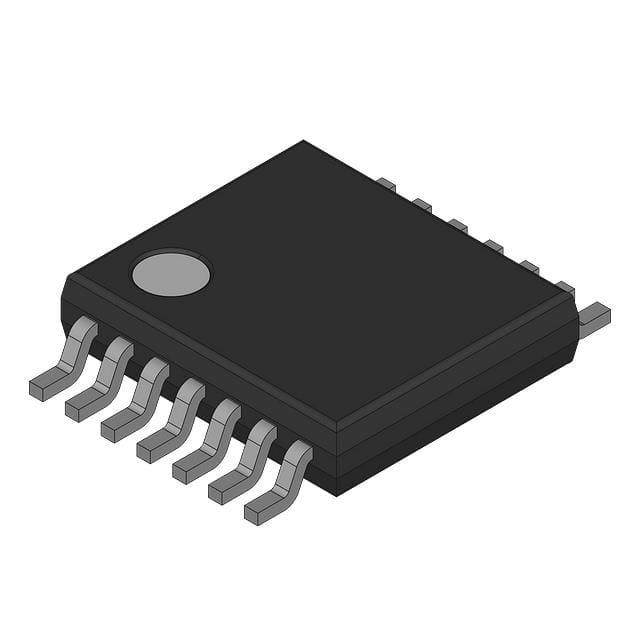

封装 TSSOP-14
封装 TSSOP-14
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC74AQPWRQ1 TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC74AQPWREP 德州仪器 | 完全替代 | SN74LVC74AQPWRQ1和SN74LVC74AQPWREP的区别 |
SN74LVC74AQPWRG4Q1 德州仪器 | 完全替代 | SN74LVC74AQPWRQ1和SN74LVC74AQPWRG4Q1的区别 |
V62/04669-01YE 德州仪器 | 完全替代 | SN74LVC74AQPWRQ1和V62/04669-01YE的区别 |
