SN74ABT125NE4

具有三态输出翻两番总线缓冲器GATES QUADRUPLE BUS BUFFER GATES WITH 3-STATE OUTPUTS

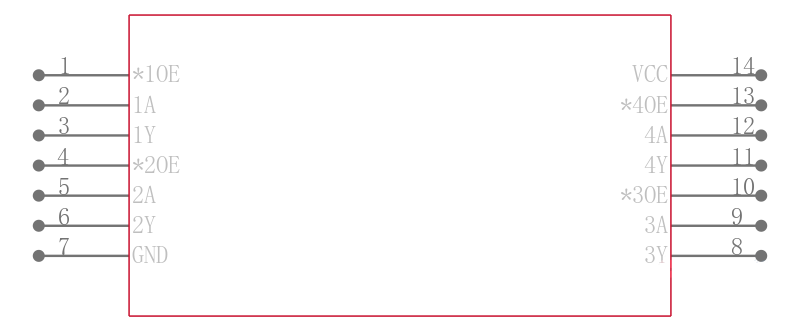

description/ordering information

The ’ABT125 quadruple bus buffer gates feature independent line drivers with 3-state outputs. Each output is disabled when the associated output-enable OE input is high.

These devices are fully specified for hot-insertion applications using Ioff and power-up 3-state. The Ioffcircuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down. The power-up 3-state circuitry places the outputs in the high-impedance state during power up and power down, which prevents driver conflict.

Typical VOLPOutput Ground Bounce

   <1 V at VCC= 5 V, TA= 25°C

High-Drive Outputs –32-mA IOH, 64-mA IOL

Ioff and Power-Up 3-State Support Hot Insertion

Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17

ESD Protection Exceeds JESD 22

  – 2000-V Human-Body Model A114-A

  – 200-V Machine Model A115-A
