八路透明D类锁存器具有三态输出 OCTAL TRANSPARENT D-TYPE LATCHES WITH 3-STATE OUTPUTS
Ideal for blocking real time information from going through this d-type low-level latch developed by Texas Instruments will exceed your needs. With a 3-state output, this is power management at its best. This latch has an operating temperature range of -40 °C to 125 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V. It has 8 channels per chip.
电源电压DC 2.00V ~ 5.50V
输出接口数 8
输出电流 16.0 mA
位数 8
电压波节 5.00 V, 3.30 V, 2.50 V
输入数 8
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
安装方式 Surface Mount
引脚数 20

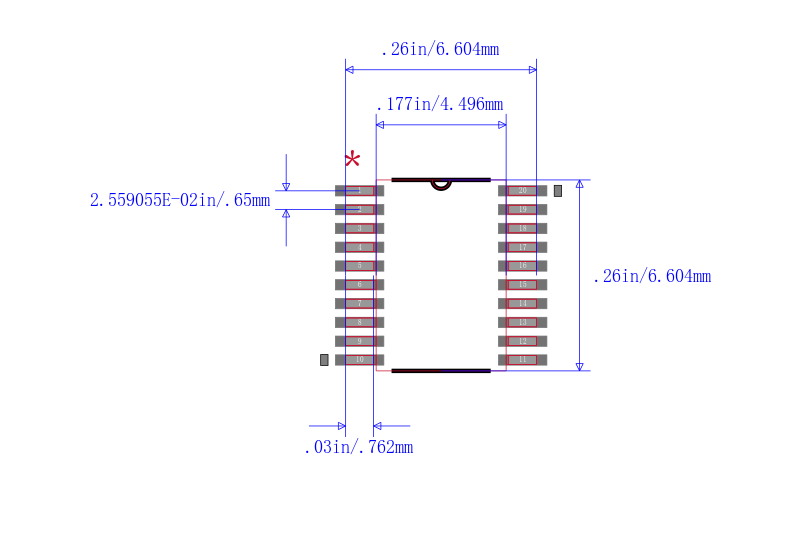

封装 TSSOP-20
高度 1.05 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LV373APW TI 德州仪器 | 当前型号 | 当前型号 |
SN74LV373APWG4 德州仪器 | 完全替代 | SN74LV373APW和SN74LV373APWG4的区别 |
SN74LV373APWR 德州仪器 | 类似代替 | SN74LV373APW和SN74LV373APWR的区别 |
SN74LV373APWT 德州仪器 | 类似代替 | SN74LV373APW和SN74LV373APWT的区别 |
